ASI 04697-BL Recessed ADA Compliant Paper Towel Dispenser and Waste Receptacle

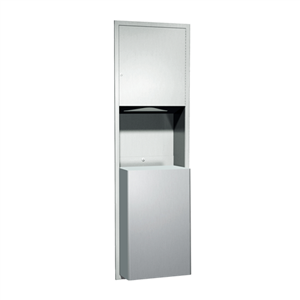

04697-BL ASI Paper Towel Dispenser with Trash Can Image image

Alternative Views:
Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $852.30
Our Price: $468.80
Savings: $383.50
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Product Code: 04697-BL
Qty:

Description Technical Specs

ASI 04697-BL Recessed ADA Compliant Paper Towel Dispenser and Waste Receptacle, Satin Finish
Construction
Recessed combination paper towel dispenser and waste receptacle fabricated of 22 gauge stainless steel with exposed surfaces in satin finish. Dispenser opening has fully hemmed in rolled edge for snag free dispensing and user safety. Adjustable guide allows dispensing of multi-fold or C-fold paper towels. Face trim is one piece construction, 1" wide with a 1/4" square return to wall. Double pan construction door is hinged to cabinet with a full length 3/16" dia. stainless steel multi staked piano hinge and locks to cabinet with tumbler lock keyed like other ASI washroom equipment.
Towel Capacity: 600 C-Fold, 800 Multifold, or 1100 Single-fold Towels
Waste Capacity: 18 Gallons

Installation
RWO: 15-3/4" W x 54-1/2" H x 7-1/4" D
Verify all rough-in dimensions prior to installation. Secure to framing with No. 10 self tapping screws (not included) at holes provided. Note that top of rough wall opening is 3/4" below top of unit.

Operation
Paper towel dispenser will dispense single fold, C-fold, or multifold paper towels with adjustable guide (included). Paper towels are replenished by unlocking the door and refilling when partially or fully empty. Waste container is emptied manually by unlocking the door. Locking compartment and receptacle retainer prevent unauthorized access or removal.

Options
Model 04697 Recessed Paper Towel and Waste Receptacle Combination Unit, 12 Gallon Waste Receptacle
Model 04697-4 Semi Recessed Paper Towel and Waste Receptacle Combination Unit
Model 04697-9 Surface Mounted Paper Towel and Waste Receptacle Combination Unit
