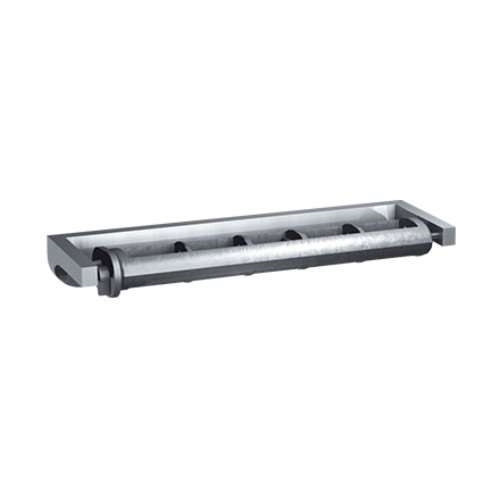

ASI 8165 Surface Mounted Paper Towel Roll Dispenser, Satin Finished Aluminum

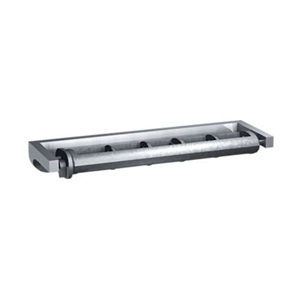

8165 ASI Paper Towel Dispenser image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $49.00
Our Price: $26.90
Savings: $22.10
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days



Product Code: 8165
Qty:

Description Technical Specs

ASI 8165 Surface Mounted Controlled Delivery Anti-Theft Paper Towel Roll Dispenser, Satin Finished Aluminum
Construction
Surface mounted roll paper towel holder with controlled delivery dispenses all standard core roll paper towels up to 6" in diameter. Fabricated of die cast aluminum with a satin matte silver gray finish. Rocking action spindle is fabricated of impact resistant, ABS thermoplastic and is theft resistant with a concealed release mechanism.

Installation
Unit is surface mounted on wall using No. 10 self tapping screws (supplied).

For compliance with ADA Accessibility Guidelines, unit should be installed so that roll center line is 54" maximum above finished floor (AFF) if clear floor side reach access is provided or 48" max. AFF if clear floor forward reach access is provided or 46" max. AFF if side reach over an obstruction is only provided (i.e. vanity).

Operation
Spindle revolves 1/2 revolution for each operation and then returns to its original position. Paper towel roll core prevents access to release pin and cannot be removed from spindle until exhausted. Unit is replenished by releasing a concealed pin which in turn releases a spring lock mechanism on spindle.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
