ASI 0184 Surface Mounted Automatic Hand Dryer, White

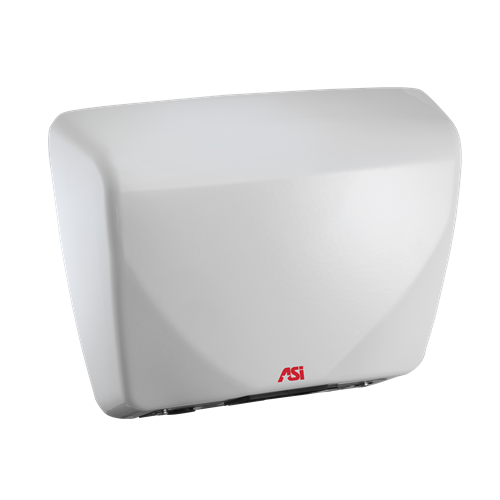

ASI 0184 Hand Dryer image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $892.50
Our Price: $490.90
Savings: $401.60
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days



Product Code: 0184
Qty:

Description Technical Specs

ASI 0184 Surface Mounted Automatic Hand Dryer, White
Construction
Surface Mounted Sensor Hand Dryer shall operate automatically from IR sensor that shall activate dryer when hands are placed in sensor zone. Motor and heating element shall have internal resetting automatic thermal protection. Cover shall be fabricated of one-piece, 16 gauge thick drawn steel or type 304 stainless steel and shall have all exposed surfaces finished with acid, chip and scratch resistant porcelain enamel on steel or bright or satin finish on stainless steel. Fixed directional air vanes shall be heavy duty, rust proof, and tamper resistant. Air intake slots shall not allow access to internal parts. Back plate shall be furnished with vibration isolating mounting bushings. Circuitry shall have self-adjusting time-out and fail-safe off protection controlled by a microprocessor that shall detect and reject false signals and shall automatically self calibrate to provide uniform sensitivity over its entire life span. Entire unit shall be internally electrically grounded. Dryer unit shall have approval and be listed under the re-examination services of Underwriters Laboratories, Inc. Owner's Manual (OM) and Mounting Template are supplied with unit.

Installation
Unit is surface mounted on wall with four (4) 1/4" screws, washers and bushings (supplied) through rubber grommets (supplied) in a corrosion protected formed heavy steel back plate. For masonry walls use expansion bolts or anchors for 1/4" screws. Electrical service is supplied and connected (by others) prior to installing cover. Cover is secured to back plate with two (2) hex socket security screws (supplied).

For compliance with ICC/ANSI A-117.1-2003 and 2010 ADA Accessibility Standards install unit with bottom of sensor lens 48" max AFF (Above Finished Floor) if clear floor forward reach or if clear floor side reach access is provided or 46" [1168] max AFF if side reach access over an obstruction (e.g. vanity) with reach depth greater than 10" and less than 25" is only provided or 44" max AFF if forward reach over an obstruction (e.g. commode) with reach depth greater than 20" and less than 25" is only provided.

For general utility install unit so that sensor lens is 44" to 50" AFF. For installation of two or more dryers, dryers should be no closer than 24" on center. See OM and Template supplied with unit.

Operation
Dryer is activated by user placing hands under sensor. LED in sensor array shines blue light during operation to guide user to optimal hand placement for shorter drying time. Dryer automatically shuts off after time-out when user removes hands from sensor zone.

Warranty
Unit shall be warranted against defects in materials or workmanship for ten (10) years per the manufacturer, American Specialties, Inc.
