Home
>
Soap Dispensers
>
Wall Mounted
>

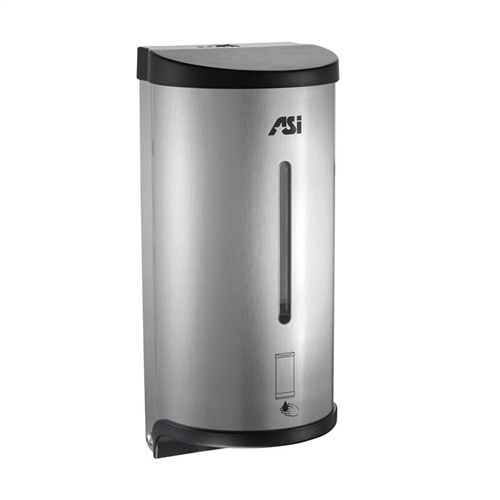

ASI 0362 Automatic Dispenser for Gel Hand Sanitizer or Liquid Soap Dispenser, 27 oz, Satin Finish
Large Quantity, Item Customization, or Government Project?
Request A Quote
or give us a call at
920-569-0895
List Price: $265.90
Our Price
:
$
146.20
Savings: $119.70
Manufacturer:
ASI
Availability:
Usually Ships in 2-3 Business Days
Product Code:
0362
Qty:
Description
Technical Specs
A Note from the Manufacturer
ASI 0362 Surface Mount or Stand Mounted Automatic Dispenser for Gel Hand Sanitizer or Liquid Soap Dispenser, 27 oz, Satin Stainless Steel Finish
ASI Soap Dispensing Information Chart
See Model
0362-41
for Matte Black Finish
Soap Recommendation
Liquid Soap or Gel Hand Sanitizer
pH Range: 5.5-8.5
Viscosity Range mPas-cP: 100-5000 (for soaps or lotions)
Viscosity Range mPas-cP: 3500-23000 (for gel sanitizers)
Construction
Automatic Gel Hand Sanitizer / Liquid
Dispenser shall hold and dispense liquid soap or gel hand sanitizers having a pH in range of 7 ± 1.5 and soaps or lotions only having viscosity in range of 100~5000 cP (mPa•s) or gel sanitizers having viscosities in range 3500 - 23000
cP (mPa•s)
and a capacity of 27 oz [.8 L] using the refillable soap tank provided or disposable 27 oz [800 ml] bag-in-a-box format. Dispenser body shall be fabricated of alloy 18-8 stainless steel, type 304 with black high impact ABS plastic top door, bottom plate and concealed gray high-impact ABS plastic back plate comprising a swing-open body secured with a top mounted lock which is opened with special barrel security key provided. All exposed stainless steel surfaces shall be either satin finish or matte black (add suffix –41). Dispenser shall be powered by four
(4) AA-size (1.5 V) batteries (not supplied)
and shall operate automatically from IR sensor that shall activate soap dispensing when hands are placed in sensor zone. Adjustable sensor detection range shall be preset at 2-3/8" ± 1-1/2" . An indicator LED shall provide status notification of battery condition and user sensor detection. Unit shall dispense a volume of .03 fl oz to .037 fl oz (1 ml to 1.1 ml) of soap or gel during each activation. A tamper resistant soap level-viewing window shall be provided. An
Owner’s Manual
shall be provided with unit in carton. A label is available separately for owner to place on dispenser indicating sanitizer operation.
Capacity: 27 oz (cartridge provided)
Installation
Surface mount unit to wall or partition with four (4) No 6 x 15/16" (M3.5 x 24) self-threading Philips pan head screws (supplied) into dry wall anchors (provided) through concealed mounting holes provided. Alternately, unit may be installed on stand (p/n FS-0300 sold separately) with DS Tape supplied with stand.
Recommended installation height for general utility is 42" to 46" AFF to bottom of unit.
For compliance with 2010 ADA Accessibility Standards install unit so that bottom of unit is no higher than 48" MAX AFF. Mount unit with bottom 7-7/8" minimum above non-metallic washbasins or countertops and 11- 13/16" above stainless steel washbasins or countertops.
Installation
and
Operation Instructions
and a
mounting template
are provided with unit in carton.
Operation
Soap or gel hand sanitizer is automatically dispensed when hands are placed in sensor zone. Unit is reloaded by unlocking lock with special key (supplied), swinging open dispenser body and removing and refilling or replacing disposable internal soap container. Soap dispenser will continue to feed properly until empty. Tank supply is replenished manually on a cycle determined by maintenance needs. Batteries are replaced yearly or as required for heavy duty operation.
Requires four
(4) AA size 1.5 V cells
(not included).
Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
