ASI 0864-41 Surface Mounted Sanitary Napkin/Tampon Vendor with Free, 25¢, 50¢ Coin Mechanism Options

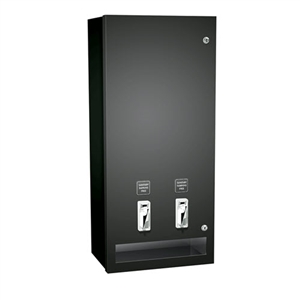

ASI 0864-41 Surface Mounted Sanitary Napkin Dispenser image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $1,052.50
Our Price: $578.87
Savings: $473.63
Manufacturer: ASI
Country of Origin: China
Availability: Usually Ships in 2-3 Business Days



Product Code: 0864-41


Coin Mechanism: 		Free
25 cents
50 cents

Qty:
Description Technical Specs

ASI 0864-41 Surface Mounted Sanitary Napkin and Tampon Vendor with Free, 25¢, 50¢ Coin Mechanism Options, Matte Black Finish
Dispenses 27 Tampons and 30 Feminine Napkins
Adjustable Flange for 1" to 6" Depth

Construction
Surface mounted dispenser includes two dispensing mechanisms, one for 27 tampons, and the other for 30 feminine napkins. Furnished with an adjustable flange for recessing in wall depths from 1" to 6". Universal coin mechanism allows for 25¢, 50¢, and free (no coin) operation. Choose appropriate suffix (-25, -50, or -F). Door shall be 18 gauge type 304 stainless steel alloy 18-8. Cabinet and adjustable trim flange shall be 22 gauge same grade stainless steel. Door shall be attached with a full length 3/16" diameter stainless steel multi-staked piano hinge and shall be held closed with two (2) tumbler locks keyed alike to other ASI washroom equipment.

Installation
Mount unit on wall using four (4) № 10 self-threading screws (by others) through concealed holes provided in cabinet rear wall.

For maximum usability and compliance with 2010 ADA Accessibility Standards, install unit so that coin slot is between 48" maximum above finished floor (MAX AFF) and 38" minimum AFF. Note that coin slot is 7" above bottom of cabinet. Installer must provide adequate wall anchoring for screw mounting.

Operation
Deposit of specified coin allows operation of dispenser. Napkin and tampon dispensers operate independently. The selected product drops into vending opening after operator actuation. Indicator displays when empty and blocks coin slot when product is depleted. Product supply is replenished by opening door and manually reloading into dispenser supply tracks. Track weights must be used to provide positive feed.



Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
