Dispenses 27 Tampons and 30 Feminine Napkins
Adjustable Flange for 1" to 6" Depth
Construction

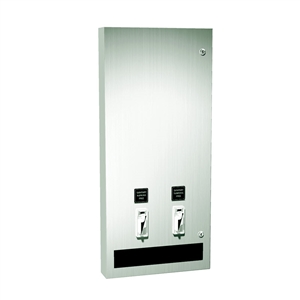

Surface Mounted Dual Sanitary Napkin & Tampon Dispenser holds 30 napkins and 27 tampons of specified
sizes. Door shall be 18 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall be satin finish and be
protected during shipment with PVC film easily removable after installation. Cabinet shall be 22 gauge same grade
stainless steel. Door shall be attached with a full length 3/16" diameter stainless steel multi-staked piano
hinge and shall be held closed with two (2) tumbler locks keyed alike to other ASI washroom equipment. Internal
coin-box shall be keyed differently than door locks. Dispensing mechanisms shall be fastener mounted internally to
provide ability to change mechanisms for coinage denomination. Structural assembly of body and door components
shall be of welded construction and have no exposed fasteners or welded seams. Weights for each feed track shall be
supplied
Installation
Mount unit on wall using four (4) № 10 self-tapping screws (by others) through concealed holes provided in cabinet rear wall.
For maximum usability install unit so that coin slot
is between 48" maximum above finished floor (MAX AFF) and 38" minimum AFF. Note that coin slot
is 7" above bottom of cabinet. Installer must provide adequate wall anchoring for screw mounting.
Operation
Deposit of specified coin allows operation of dispenser. Napkin and tampon dispensers operate independently. The selected product drops into vending opening after operator actuation. Indicator displays when empty and blocks coin slot when product is depleted. Product supply is replenished by opening door and manually reloading into dispenser supply tracks. Track weights must be used to provide positive feed.
Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
|
|
|
|
|
|
|
