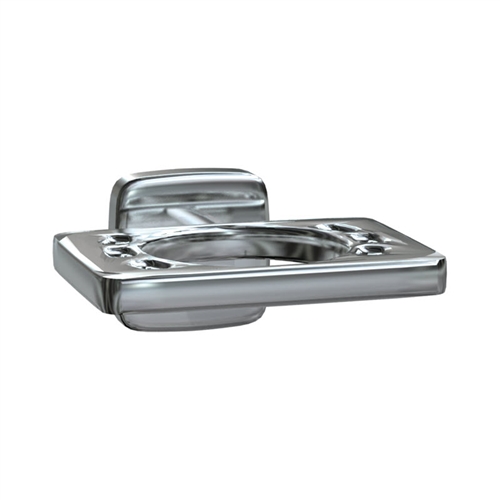

ASI 7335-S Wall Mounted Toothbrush and Cup Holder, Satin Stainless Steel Finish
ASI 7335-S Wall Mounted Toothbrush and Cup Holder,

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $18.20
Our Price: $10.00
Savings: $8.20
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days



Product Code: 7335-S
Qty:

Description Technical Specs

ASI 7335-S Wall Mounted Toothbrush and Cup Holder, Satin Stainless Steel Finish
Dimensions
4-1/4" W x 4" D

Construction
Tumbler and Toothbrush Holder shall be fabricated of stainless steel alloy 18-8, type 304. Holder tray shall be of drawn seamless construction with a 2-1/2" diameter hole to hold a tumbler and slots to hold six (6) standard toothbrushes. Support post shall be 1" x 1/2" rectangular tubing with formed mounting flange and bracket welded on end. A stainless steel setscrew shall be provided on bottom perimeter of flange to lock unit to mounting plate. Mounting plate shall be provided and shall be 18 gauge. Surface finish shall be bright (-B) or satin (-S) as chosen by option and indicated by code suffix.

Installation
Surface mount unit on wall using No 10 self tapping screws (by others) through holes provided in mounting plate into suitable prepared mountings (by others) or other suitable mounting hardware (by others) to suit wall conditions. Hang post and flange assembly on mounting plate and tighten setscrew to lock unit to plate.

For compliance with ICC/ANSI A-117.1-2003 and ADA Accessibility Guidelines install unit with top of holder tray 48" maximum above finished floor (MAX AFF) if clear floor forward reach or if clear floor side reach access only is provided or 46" MAX AFF if side reach access over an obstruction (e.g. vanity) with reach depth greater than 10" and less than 25" is only provided or 44" MAX AFF if forward reach over an obstruction with reach depth greater than 20" and less than 25" is only provided.

For general utility mount unit with top of holder tray 8" to 12" above vanity basin.
