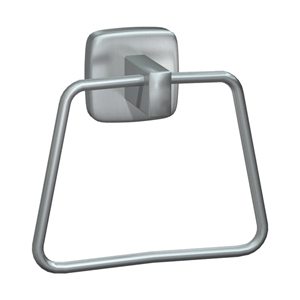

ASI 7385-S Rectangular Towel Ring, Satin Finish Stainless Steel
ASI 7385-S Rectangular Towel Ring, Satin Finish Stainless Steel

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $23.50
Our Price: $12.90
Savings: $10.60
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days



Product Code: 7385-S
Qty:

Description Technical Specs

ASI 7385-S Rectangular Towel Ring, Satin Finish Stainless Steel
Dimensions
Projects 2-1/2"

Construction
Towel Ring shall be fabricated of stainless steel alloy 18-8, type 304. Support post shall be 1/2" x 1" (13mm x 25mm) rectangular tubing with formed mounting flange and bracket welded on end. Ring shall be formed from 1/4" diameter (Ø6.4mm) stainless steel rod. Mounting plate shall be included and shall be 18 gauge. A stainless steel setscrew shall be provided on bottom perimeter of flange to lock unit to mounting plate. Surface finish shall be bright (-B), satin (-S), or Powder Coated (-41) Matte Black as chosen by option and indicated by code suffix.

Installation
Surface mount unit on door or wall using No 10 self tapping screws (by others) through holes provided in mounting plate into suitable prepared mountings (by others) or other suitable mounting hardware (by others) to suit door or wall conditions. Hang post and flange assembly on mounting plate and tighten setscrew to lock unit to plate.

For compliance with ICC/ANSI A117.1-2003 and ADA Accessibility Guidelines install unit with centerline of towel ring 48" maximum above finished floor (MAX AFF) if clear floor forward reach or if clear floor side reach access only is provided or 46" MAX AFF if side reach access over an obstruction (e.g. vanity) with reach depth greater than 10" and less than 25" is only provided or 44" MAX AFF if forward reach over an obstruction with reach depth greater than 20" and less than 25" is only provided. For general utility install ring with centerline of mounting plate between 50" and 60" AFF.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
