ASI 9343 Profile Collection Horizontal Surface Mtd Manual Liquid Soap Disp, 48 oz

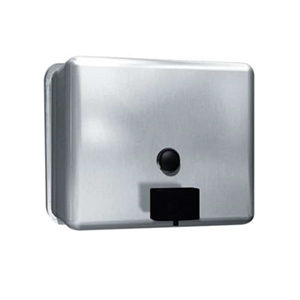

ASI 9343 Liquid Soap Dispenser

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $106.50
Our Price: $58.60
Savings: $47.90
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days



Product Code: 9343
Qty:

Description Technical Specs A Note from the Manufacturer

ASI 9343 Profile Collection Surface Mtd Horizontal Manual Liquid Soap Dispenser, 48 oz, Satin Finish
Soap Recommendation
Liquid soap
pH Range: 5.5-8.0
Viscosity Range mPas-cP: 100-2500

Construction
Surface mounted liquid soap dispenser is fabricated of 20 gauge stainless steel, alloy 18-8, type 304. All exposed surfaces have No. 4 satin finish. Soap valve is constructed of a plastic valve body and push button with stainless steel and plastic internal parts.
Capacity: 48 oz.

Installation
Unit is secured to a wall plate which is surface mounted to wall or partition with a wall mounting plate (supplied) and screws (by others). Secure unit to interlocking wedge bracket and locked in place by a locking screw (supplied) installed through tamper resistant hinged refill door.

For maximum usability and compliance with ADA Accessibility Guidelines, unit should be installed so that valve is 54" (1372mm) max. above finished floor (AFF) when clear floor side reach access is provided or 48" (1219mm) max. AFF if clear floor forward reach access is provided or 46" (1168mm) max. AFF if side reach over an obstruction only is provided (ie: vanity). Recommended installation for general utility is 42" (1066 mm) AFF or 6" (152mm) minimum above wash basin.

Operation
Soap is manually dispensed by depressing push button. Valve operation complies with ADA Accessibility Guidelines by requiring no more than 5 lbs. pressure to actuate and requires no grasping or twisting by operator. Unit is refilled through hinged door at top requiring special key (furnished) to open.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.

Accessories
ASI Gauge-001 Plastic Sight Window - See Product Description for Models ASI V-321 Low Profile Retrofit Liquid Soap Valve, Black ABS Plastic ASI V40-9 O-Ring for Gauge-001 ASI 9326 Profile Collection Horizontal Recessed Manual Liquid Soap Disp, 52 oz
Our Price: $3.20
Our Price: $30.00
Our Price: $2.10
Our Price: $194.60
ASI Gauge-001 Plastic Sight Window ASI V-321 Soap Dispenser Valve ASI V40-9 O-Ring for Gauge-001 ASI 9326 Liquid Soap Dispenser
