Construction

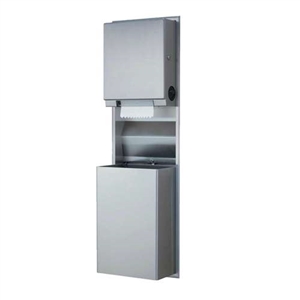

Recessed combination paper towel dispenser and waste receptacle fabricated of 22 gauge stainless steel with exposed surfaces in satin finish. Cabinet is of all welded construction. Flange is of one drawn and beveled seamless piece construction and has matching satin stainless steel finish. Dispenser rounded towel tray has hemmed opening to dispense paper towels without tearing. Door is secured to cabinet with a full length stainless steel piano hinge and is equipped with a tumbler lock keyed like other Bobrick washroom accessories. Waste receptacle is made of 22 gauge stainless steel with all edges hemmed for safe handling.
Towel Capacity: Standard Core Roll, 8" W x 8" D, 800 ft long
Waste Capacity: 18 Gallons

Installation
RWO: 15-7/8" W x 54-3/4" H x 4" D
Verify all rough-in dimensions prior to installation. Secure to framing with mounting No. 8 x 1-1/4" sheet metal screws (not included). Shim at screw points as required.

Operation
Touch free roll towel mechanism dispenses one 12" length of paper towel per pull. User only touches the paper. Exterior paper towel feed is available for use when filling dispenser and for user to advance paper towel when necessary. Waste receptacle is emptied by unlocking the door and removing bin. See part number B-368-168 for reusable liner, sold separately.

**To convert the paper towel unit to a folded towel dispenser module, see part number B-3944-52

**To convert the paper towel unit to an automatic universal roll towel dispenser module, see part number B-3974-150


Options
Model B-39619 Surface Mounted Paper Towel and Waste Receptacle Unit
Model B-3961 Recessed Paper Towel and Waste Receptacle with 12 gallon capacity
