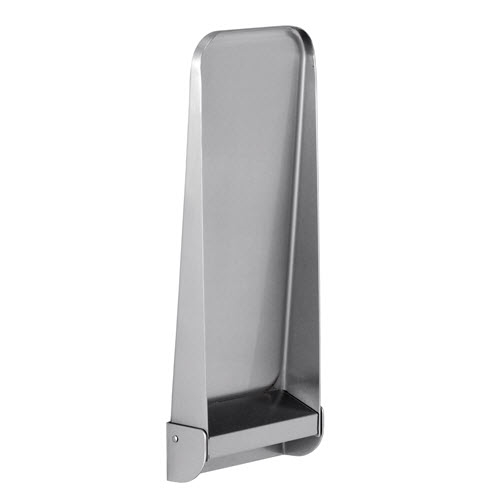

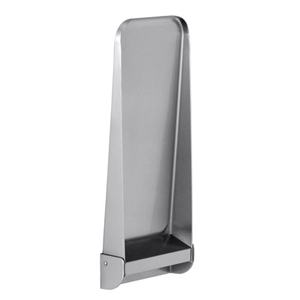

Bobrick B-287 Folding Utility Shelf, Satin Finish Stainless Steel
Bobrick B-287 Folding Utility Shelf

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $172.80
Our Price: $99.36
Savings: $73.44
Manufacturer: Bobrick
Country of Origin: Taiwan
Availability: Usually Ships within 2-3 Business Days



Product Code: B-287
Qty:

Description Technical Specs

Bobrick B-287 Folding Utility Shelf, Satin Finish Stainless Steel
Construction
Folding utility shelf shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Shelf shall be equipped with a heavy-duty internal spring. Shelf holds 100 lbs when properly installed. Shelf shall automatically return to upright position when not in use.

Installation
Mount unit on wall or toilet partition adjacent to latch side of compartment door with two sheet-metal screws, furnished by the manufacturer, at points indicated by an S.

For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure with sheet-metal screws furnished. For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws furnished, or provide 1/8" toggle bolts or expansion bolts.

For partitions with particle-board or other solid core, secure unit with sheet-metal screws furnished or provide through-bolts, nuts, and washers. For hollow-core metal partitions, provide solid backing into which furnished sheet-metal screws can be secured. If two units are installed back-to-back, provide threaded sleeves and machine screws for the full thickness of partitions.

Note: Provide 5" minimum clearance from the inside surface of toilet compartment door to the front edge of shelf to allow door to swing open and close. Provide 14-7/8" minimum clearance above the mounting screw holes to the underside of any horizontal projection.

Operation
Shelf holds 100 lbs when properly installed. Shelf automatically returns to upright position when object is removed. Toilet compartment door cannot be opened when shelf is in use.
