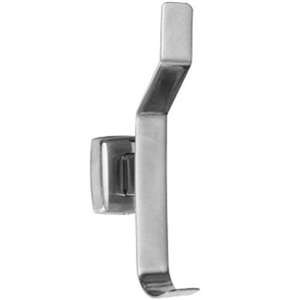

Gamco 7682 Bright Polished Stainless Steel Hat and Coat Hook

Home > Hooks >

Gamco 7682 Bright Polished Stainless Steel Hat and Coat Hook, Concealed Mt

Our Price: $13.45

Manufacturer: Gamco
Country of Origin: Taiwan
Availability: Usually Ships in 2-3 Business Days

Product Code: 7682

Qty:

Description

Technical Specs

Gamco 7682 Bright Polished Stainless Steel Hat and Coat Hook, Concealed Mount

Construction
Hat and coat hook shall be surface-mounted fabricated of type-304 stainless steel with bright polished finish. Flange and support arm shall be 22-gauge and equipped with a concealed, 19-gauge mounting bracket that is secured to a concealed, 19-gauge wall plate with a stainless steel setscrew. Hook shall be 13-gauge, welded to the support arm.

Installation
To remove concealed wall plate from back of flange and mounting bracket, loosen setscrew. Mount wall plate so prongs are at top; secure with two sheet-metal screws, furnished by manufacturer, at points indicated by an S. Engage mounting bracket onto prongs of wall plate, then secure into position by tightening setscrew at bottom of flange.

For partitions with particle-board or other solid core, secure with sheet-metal screws furnished, or provide through-bolts, nuts, and washers

For hollow-core metal partitions, provide solid backing into which the furnished sheet-metal screws can be secured.

For plaster or drywall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws furnished.

For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws furnished, or provide 1/8" toggle bolts or expansion bolts.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship under normal usage service for one (1) year from date of sale. Gamco warrants to commercial purchasers only.
