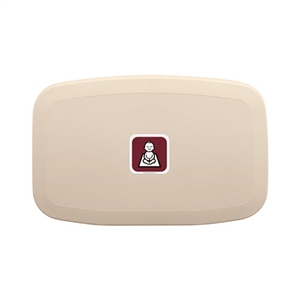

Gamco Baby Changing Stations ship complete with all safety straps, bag hooks, mounting instructions, and hardware
Construction
Gamco baby changing station body shall be durable, injection-molded polypropylene. Design of unit shall be surface-mounted. Unit shall be equipped with a pneumatic cylinder for controlled opening and closing of the bed. Bed shall be secured to metal mounting chassis with a concealed steel-on-steel hinge. No hinge structure shall be exposed on interior or exterior surfaces. Unit shall comply with ADA regulations when properly installed. Bed shall have smooth concave changing area with a nylon safety strap and two hooks for bags or purses. The design and manufacturer of Gamco products is intended to be compliant with the 2010 ADA Standards for Accessible Design and the 2009 ICC A117.1, Accessible and Usable Buildings and Facilities. Unit shall confirm to the ASTM F2285-22 Standard Safety Performance Specification for Diaper Changing Tables for Commercial Use, ANSI Z535.4 Product Safety Signs and Labels, EN 12221:2008.
Installation
To assure proper installation and compliance to building codes, it is recommended that a qualified
person or carpenter perform the installation of the unit. The unit must be properly installed onto
a permanent wall that is capable of holding a substantial load. The Gamco Changing Station meets ADA regulations when
properly installed. The maximum recommended total weight for this baby changing station (including baby and parcel bag) is 50lbs. Excessive weight may cause a hazardous or unstable condition to exist.
1. Remove changing station from the shipping container and check for any freight damage. Identify the best location for installing the unit.
2. Remove the bed and chassis from the box. Open the main unit by pulling up on the frame and remove the plastic liner dispenser. Set it to one side. Make sure you have taken into consideration the operating clearance of 8-15/16" (228mm) on both sides of the exposed chassis and 23-3/16" (589mm) from wall surface when open.
Wood Stud Wall: Measure from the floor 37-7/16" (951mm) on stud center and mark the wall. The mounting holes are designed for 16" (406mm) stud centers. Ensure the locations you have marked for the mounting holes are level before drilling. Drill pilot holes for keyhole mounting using a 1/8" regular drill bit. If the wall has wooden studs that are not 16" (406mm) centers, you will need to use toggles to secure one side of the unit. The other side should be secured to the stud using the screws provided. You must allow for space inside the wall for the toggles to turn. This will vary depending on the toggles used.
Masonry or Tile over Stud Wall: Use a 7/32" (5mm) masonry drill bit for the pilot hole until you hit the stud. Change bit to 1/8" (3mm) regular drill bit.
Metal Stud or Concrete Block: If the wall has metal studs or an underlying surface of concrete block, you will need to use toggles to secure one side of the unit. The other side should be secured to the stud using the screws provided. You must allow for space inside the wall for the toggles to turn. This will vary depending on the toggles used.
3. Mount bed and chassis by screwing two of the mounting screws into the pilot holes leaving 1/4" (6.4mm) exposed to allow keyhole slots to be easily mounted over the screw heads. Place chassis over the screws. After securing the unit using the keyhole slots, verify that the unit is level. Tighten top two screws so that they are flush with the wall. Use the four lower holes as a guide to mark and drill pilot holes. Use remaining four screws and four washers to complete installation of bed and mounting bracket. Insert washers over lower four screws. All six screws and four washers must be properly mounted to the chassis.
4. To install wall cover ensure wall cover is free from damage. Line up mounting holes onto chassis and secure with the two screws provided. Cover mounting holes with provided plugs.
5. Clean work area and inspect unit to ensure it opens and closes smoothly.
Operation
Concealed pneumatic cylinder and metal mounting chassis provides controlled, slow opening
and closing of bed. Polypropylene is easy to clean and resists odors and bacterial growth.
Complies with ASTM static load performance requirements when properly installed.
Warranty
Gamco warrants that at the time that any baby changing station is delivered to Purchaser, they will be free from defects in material and workmanship under normal use and service, with proper maintenance, for a period of one (1) year. These warranties are limited to, at the option of Gamco, the repair or replacement of the defective item, provided that such item is returned to Gamco, transportation prepaid, for Gamco’s inspection and approval. Gamco warrants to commercial purchasers only.
|
