Koala Kare KB112-01RE Baby Changing Station

Home > Childcare Products > Parts / Accessories >

Koala Kare KB112-01RE Countertop Recessed Baby Changing Station, Grey Granite

List Price: $356.00

Our Price: $183.34

Savings: $172.66

Manufacturer: Koala Kare
Country of Origin: USA
Availability: Usually Ships in 2-3 Business Days

Product Code: KB112-01RE

Qty:

Description

Technical Specs

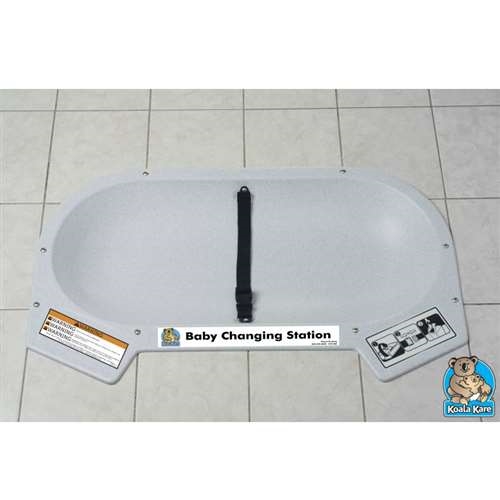

Koala Kare KB112-01RE Countertop Recessed Baby Changing Station, Grey Granite

Construction
Countertop recessed baby changing station is fabricated of thermoformed high density polyethylene. The bed has a smooth concave changing area with a nylon safety strap and universal instruction graphics.

Installation
To ensure proper installation and compliance to building codes, it is recommended that a qualified person or carpenter perform the installation of the unit.

Drilling Holes and Mounting the Station
1. Remove the station from the shipping container and check for any freight damage.

2. Remove the rough opening template from the shipping carton. Separate the oval template from the cardboard sheet. Use template to trace rough opening to allow saw access. Cut out rough opening.

3. Construct under counter support as shown in the illustration. Support should be 3” below bottom of mounting surface.

4. Place unit onto counter surface in desired position. Using the unit’s mounting holes as a guide, mark the screw hole locations with a pencil. Remove unit and drill holes with a 5/32” (3.97 mm) diameter drill bit. Drill down ¾” (19.05 mm) deep. Place the unit onto counter surface using the drilled holes as a guide. Screw fasteners through holes into countertop surface. Apply a suitable water sealant (not provided) such as silicone around the base of the unit.

5. Fill the built-in dispenser with sanitary bed liners.

Warranty
Unit shall be backed by manufacturer’s 5-year limited warranty on materials and workmanship.
