Koala Kare KB311-SSRE Recessed Vertical Baby Changing Station, Satin SS Finish

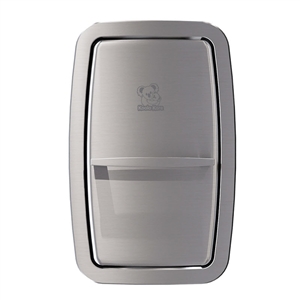

Koala Kare KB310-SSRE Baby Changing Station image

Alternative Views:


Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $2,427.00
Our Price: $1,249.91
Savings: $1,177.09
Manufacturer: Koala Kare
Country of Origin: USA
Availability: Usually Ships in 2-3 Business Days


Product Code: KB311-SSRE
Qty:

Description Technical Specs

Koala Kare KB311-SSRE Recessed Vertical Baby Changing Station, Satin Stainless Steel Finish
Construction
Koala Kare baby changing station shall have durable, single piece deep drawn 304 satin finished stainless steel outer shell and recessed pan with injection molded polypropylene interior. Design of unit shall be recess mounted. Unit shall be equipped with a pneumatic cylinder for controlled opening and closing of bed. Bed shall be secured to metal mounting chassis with a concealed steel on steel hinge. No hinge structure shall be exposed on interior or exterior surfaces. Unit shall have mounting hardware included. Unit shall have Microban antimicrobial embedded into plastic material on the changing surface. Unit shall fully comply with ADA regulations when properly installed. Bed shall have smooth concave changing area with a safety strap and external stainless steel hook for bags or purse provided.

The design and manufacture of Koala products is intended to be compliant with the 2010 ADA Standards for Accessible Design and the 2009 ICC A117.1, Accessible and Usable Buildings and Facilities. Unit shall conform to ASTM F2285-04(16) Standard Safety Performance Specification for Diaper Changing Tables for Commercial Use. ANSI Z535.4 Product Safety Signs and Labels. EN 12221:2008+A1: 2013. Unit shall have a built in Liner Dispenser for use with 3-ply chemical free biodegradable bed liners, instructional graphics, and safety messages in 4 languages.

Installation
To ensure proper installation and compliance to building codes, it is recommended that a qualified person or carpenter perform the installation of the unit. The unit must be properly installed onto a permanent wall that is capable of supporting significant weight and can accommodate the supplied installation hardware.

Rough Wall Opening: 21-1/2" W x 36-3/4" H x 4" D (unit recesses 3-31/32")

1. Prepare the rough wall opening per the Technical Data sheet. Make sure top of bottom stud is at 26-7/8" (675mm) to ensure correct mounting height.

2. Remove the handles and bag hook from the packaging and set to one side. Open the unit by pulling up on the handle mounting studs and remove the plastic liner dispenser from inside the unit and set to one side.

3. With the assistance of a second person, lift and position the unit into the rough wall opening. Have one person hold the unit and place into the wall while the other opens the unit using the handle mounting studs.

4. Open unit fully and you will have access to the six mounting holes on either side of the unit. Using the hardware provided, predrill and screw through the mounting holes. Do not over tighten.

5. With the unit open, take the liner dispenser and position it over the exposed metal frame in the center of the recess. Use the provided key to open the liner dispenser. This will provide access to the four mounting holes. Use the provided hardware to secure the liner dispenser to the metal frame. Lock the liner dispenser and close the unit.

6. Take one of the provided handles and position it over the handle mounting studs, so that the open portion is toward the top of the unit. Use provided Allen wrench to tighten the set screws in the handles, securing it to the handle mounting studs. Repeat for the opposite handle.

7. Test the unit by opening and closing multiple times, ensuring it opens and closes smoothly. Remove protective film from the surface of the unit.

8. To install the bag hook, measure up 44" from finished floor in the desired location and mark the wall. Position the bag hook on the wall so that the top of the mounting plate is level with the 44" mark. Position the bag hook over a wall stud for optimal strength. Mark then predrill the mounting holes. Use the provided screws to secure the bag hook in position, then take the escutcheon plate and screw it over the mounting plate to cover the mounting screws.

The design and manufacture of Koala products Is intended to be compliant with the 2010 ADA Standards for Accessible Design and the 2009 ICC A117.1, Accessible and Usable Buildings and Facilities. Unit shall conform to ASTM F 2285-04 Standard Safety Performance Specification for Diaper Changing Tables for Commercial Use, ANSI Z535.4 Product Safety Signs and Labels, EN 12221:2008, ASTM G22 Antibacterial standards or local code if more stringent installation requirements are applicable for Barrier-Free accessibility.

Operation
Concealed pneumatic cylinder provides controlled, slow opening and closing of bed. Polypropylene is easy to clean and resists odors and bacterial growth. Complies with ASTM static load performance requirements when properly installed. Internal liner dispenser with integrated spring tab dispenses one liner at a time. Handles guide patron to operate unit with less than 5 lbs of force and act as cane detection if unit is left in open (down) position.

Warning: To ensure that the unit supports the intended loads, baby changing stations must be properly installed according to the manufacturer's instructions.

Warranty
Koala warrants that at the time that any baby changing station is delivered to Purchaser, they will be free from defects in material and workmanship under normal use and service, with proper maintenance, for a period of five (5) years. These warranties are limited to, at the option of Koala, the repair or replacement of the defective item, provided that such item is returned to Koala, transportation prepaid, for Koala's inspection and approval.
