ASI 046924 Recessed Lever Operated Roll Paper Towel Dispenser/Waste Receptacle
046924 ASI Combination Lever Operated Roll Paper Towel Dispenser and Waste Receptacle image

Alternative Views:


Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $1,107.40
Our Price: $609.10
Savings: $498.30
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Product Code: 046924
Qty:

Description Technical Specs

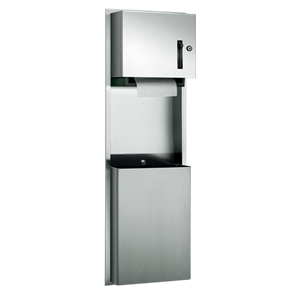

ASI 046924 Recessed Lever Operated Roll Paper Towel Dispenser and Waste Receptacle, Satin Finish
Construction
Recessed roll paper towel dispenser and waste receptacle fabricated of 22 gauge stainless steel with exposed surfaces in satin finish. A lever operated dispensing mechanism is supplied. Dispenser opening is smooth and burr free for snag free dispensing and user safety. Face trim is one piece construction, 1" wide with a 1/4" square return to wall. Door is hinged to cabinet with a full length 3/16" dia. stainless steel multi staked piano hinge and locks to cabinet with tumbler lock keyed like other ASI washroom equipment. Waste container has hemmed edges for safety and is retained by tumbler lock keyed like other ASI washroom equipment.
Towel Capacity: 8" Standard Core Roll
Waste Capacity: 12 Gallons

Installation
RWO: 15-3/4" W x 54-1/2" H x 4" D
Verify all rough-in dimensions prior to installation. Secure to framing with four (4) No. 10 self tapping screws (not included) at holes provided. Note that top of rough wall opening is 3/4" below top of unit.

Operation
Towels are fed by lever action with adjustable feed lengths by pin (supplied) limiting the lever stroke length. Paper towels are replenished by unlocking the door and refilling fully empty. Waste container is emptied manually by unlocking the door. Locking compartment and receptacle container prevents unauthorized access or removal.

Options
Model 046924-9 Surface Mounted Roll Paper Towel and Waste Receptacle Combination Unit
