ASI 0032 Partition Mounted Multi Roll Toilet Tissue Dispenser (Serves 2 Stalls)

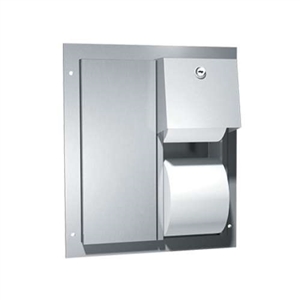

ASI 0032 Toilet Paper Holder image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $481.50
Our Price: $264.80
Savings: $216.70
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days



Product Code: 0032
Qty:

Description Technical Specs

ASI 0032 Partition Mounted Multi Roll Toilet Tissue Dispenser (Serves 2 Stalls), Satin Finish
Adjustable for Partition walls 1/2" - 2-1/2" Thick

Construction
Partition mounted toilet paper roll holder is fabricated of type 304 alloy 18-8 stainless steel. The face trim mounting flanges are of one piece construction 1" wide with no welded miters and has square 1/4" returns to partition. All exposed surfaces are satin finish. The internal mechanism levers are molded high impact resistant plastic for smooth operation. The door is held closed with a tumbler lock keyed like other ASI washroom equipment. Theft resistant and vandal resistant rollers are molded of high impact resistant plastic with integral molded in stainless steel end pins. Four (4) R-004 rollers are included.

Installation
PCO Required is 12-1/8" W x 12-1/4" H x 1/2" to 2-1/2" Thick (308 x 311 x 13 to 64)

Partition mount unit through pre-cut partition cutout (PCO) using four (4) No. 10 x 3/4" (M5 x 20) Philips self tapping screws (supplied) per side (8 total) through mounting holes provided through fixed mounting frame and adjustable mounting fame into suitably prepared partition (by others). Mounting holes are offset 1/2" from opposite side frame holes for screw clearance. Mounting flanges adjust to accommodate partition thickness of 1/2" minimum to 2-1/2" maximum.

For compliance with 2010 ADA Accessibility Standards and 2015 ABA Standards install unit with axis of bottom roller 15" min above finished floor to 48" max above finished floor and centerline of dispenser shall be 7" min to 9" max.

Operation
Reloading instructions are printed on graphic label inside door. Bottom roll is depleted prior to top roll automatically dropping into lower position for use. The empty rollers can not be removed without a key unlocking the door. Holds and dispenses four (4) standard or four (4) 5-1/4" diameter tissue rolls.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
