ASI 0697-GAL Surface Mounted Toilet Tissue Dispenser with Shelf, Satin Finish

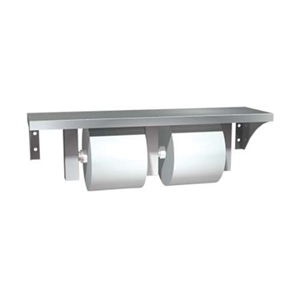

ASI 0697-GAL Toilet Paper Holder image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $116.50
Our Price: $64.10
Savings: $52.40
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days



Product Code: 0697-GAL
Qty:

Description Technical Specs

ASI 0697-GAL Surface Mounted Toilet Tissue Dispenser with Shelf, Satin Finish
Construction
Surface mounted shelf and dual toilet paper holder is fabricated of type 304, 18-8 alloy stainless steel with all exposed surfaces in a satin finish. The structural assembly of shelf and brackets are of welded construction. The shelf is 5" x 18" with a 5/8" hemmed lip on the front edge. Two (2) rollers molded of high impact resistant polystyrene plastic are supplied.

Installation
Surface mount to wall or partition using No. 10 self threading screws (by others) through holes provided in support brackets.

For compliance with 2010 ADA accessibility Standards and 2015 ABA Standards, install unit so that centerline of nearest roll holder is 7" min to 9" max from front of toilet and axis of rolls is 15" min AFF (Above Finished Floor) to 23" max AFF. Recommended mounting height for general utility is 32" to 36" AFF.

Operation
Toilet paper rolls are self feeding on user pull demand until supply is depleted. Rollers are spring loaded and are free rolling.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
