Soap Recommendation
Liquid Soap or Gel Hand Sanitizer
pH Range: 5.5-8.5
Viscosity Range mPas-cP: 5-3000 (Soaps Only)
Viscosity Range mPas-cP: 3500-23000 (Gel Sanitizers Only)
Construction

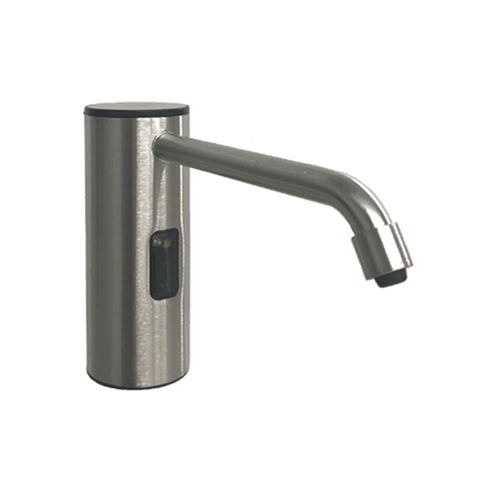

Vanity Mounted Stainless Steel Automatic Liquid Soap and Sanitizer Dispenser shall hold and dispense liquid soap or gel hand sanitizer having a PH in range 7 ± 1.5 and soaps only having viscosity range of between 5 and 3000 mPa•s or cP (MilliPascal-sec or Centipoise) or gel sanitizers having viscosities in range 3500 - 23000 mPa•s or cP (MilliPascal-sec or Centipoise) from supply tank in pump housing with a capacity of 51 FL Oz. Dispenser spout body shall be type 304 stainless steel alloy 18-8 and all exposed stainless steel surfaces shall be satin finish or bright finish as chosen by suffix code (-S for satin or -B for bright). Dispenser shall be powered by four (4) AA-size (1.5V) batteries (not supplied) and shall operate automatically from IR sensor that shall activate soap dispensing when hands are placed in sensor zone. An optional AC adapter is available (order Model № 72-ACA separately). Sensor detection range shall be preset at 4-3/4" ± 1-1/2" and shall self-compensate for lighting conditions. An indicator LED shall provide status notification of battery condition, soap or sanitizer level and condition, and user sensor detection. Unit shall dispense a volume of .034 ~ .051 fl oz (1 ~ 1.5 ml) of liquid soap or sanitizer during each activation. Supply tank installed under vanity is clear with graduated markings to continuously provide soap or sanitizer level indication. An Owner’s Manual (OM) and Mounting Template (MT) shall be provided with unit in carton.
Capacity: 51 oz
Installation
Mount unit to counter top with washers and basin nut (supplied) into 1" diameter hole located in counter top per template or to suit site conditions. Install pump control module with supply tank under vanity as per MT provided. Installation and Operation Instructions and a mounting template are provided with unit in carton.
Operation
Liquid soap or gel sanitizer is automatically dispensed when hands are placed in sensor zone. LED indicator flashes once to indicate detection of object in sensor zone. Diagnostic constant or green or red LED flashes indicate battery and/or dispense product condition (see OM for full description). Soap dispenser will continue to feed properly until empty. Tank supply is replenished manually on a cycle determined by maintenance needs.
Foam Soap Dispenser Options
Model 0335-S Foam Soap Dispenser with Satin Stainless Steel Finish
Model 0335-B Foam Soap Dispenser with Bright Polish Stainless Steel Finish
Liquid Soap Dispenser Options
Model 0334-S Liquid Soap Dispenser with Satin Stainless Steel Finish
Model 0334-B Liquid Soap Dispenser with Bright Polish Stainless Steel Finish
|
|
|
|
|
|
|
