ASI 0350 Liquid Soap Dispenser - Division 10 Direct

Home > Soap Dispensers > Wall Mounted >

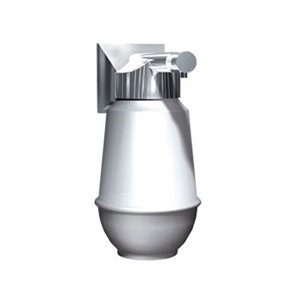

ASI 0350 Surface Mounted Manual Surgical Soap Dispenser, 16 oz, Bright Polish

List Price: $41.30

Our Price: $22.70

Savings: $18.60

Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days

Product Code: 0350

Qty:

Description

Technical Specs

A Note from the Manufacturer

ASI 0350 Surface Mounted Manual Surgical Soap Dispenser, 16 oz, Bright Polish

Soap Recommendation
Liquid soap
pH Range: 5.5-6.5
Viscosity Range mPas-cP: 100-2500

Construction
Surface mounted liquid soap dispenser is fabricated of white polyethylene soap container and a dispenser/ valve constructed of chrome plated brass with plastic internal parts.
Capacity: 16 oz.

Installation
Unit is secured to a wall plate which is surface mounted to wall or partition using No. 10 self tapping screws(supplied).

For maximum usability and compliance withADA Accessibility Guidelines, unitshould be installed so that valve is 54" (1371mm) maximum above finished floor (AFF) when clear side access is provided; 48" (1219mm) AFF. with forward reach access only and 46" (1168mm) with side reach over an obstruction (ie: vanity). Recommended installation is 42" (1066mm) AFF or 6" (152mm) minimum above wash basin.

Operation
A measured amount of soap is manually dispensed by pushing against valve push button. Valve operation complies with ADA Accessibility Guidelines by requiring no more than 5 lbs. pressure to actuate and requires no grasping or twisting by operator. Unit can be reloaded by unlocking soap tank from wall bracket.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
