**Note: This model is for top fill multi feed. Dispenser Only. The multi feed system requires model 0390 kit and 0393-R remote to operate. 0390 and 0393-R can be purchased separately. (The 0390 Kit includes 6 L container, top fill tube, and counter fill port with cover)

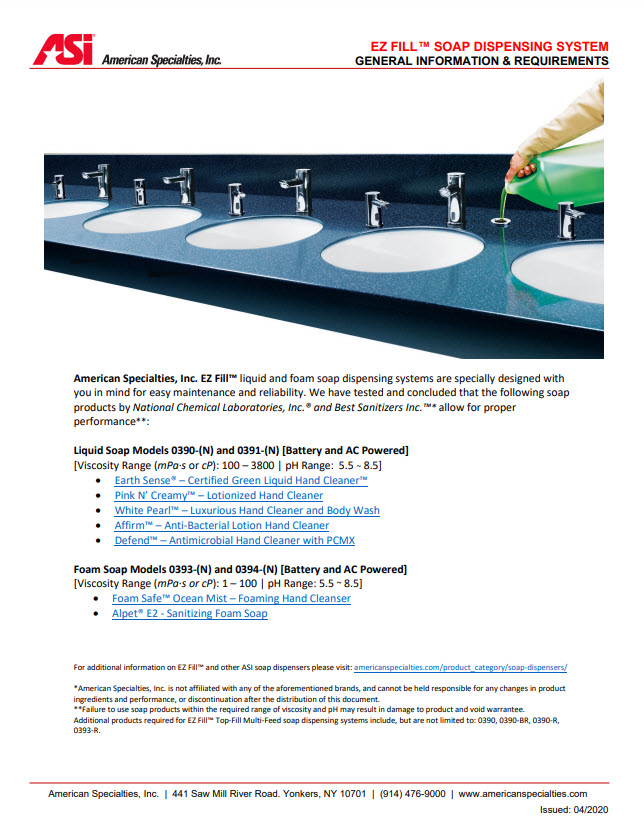

Soap Recommendation (See "A Note from the Manufacturer Section" for tested soaps)
Foam soap. Clear foaming liquid, no abrasives.
pH in range 7+/- 1.5
Viscosity Range mPas-cP: 1-100
Construction
EZFill™ Vanity Mounted Automatic Soap Dispensing System Foam Soap Dispenser shall dispense liquid foaming soap
with pH in range 7± 1.5 and viscosity in range 1–100 cP (mPas) and shall dispense in stream cycles with soap volume and
air volume adjustable by owner with remote control programming unit (optional: Model Number: 0393-R). Operation is initiated by hands-free sensor controlled by microprocessor digital circuitry and peristaltic pump is
powered by six (6) ‘D’-size 1.5V batteries (supplied by others) in a screw-locked IP67 rated compartment (provided) located
under counter or an AC Adapter (also IP67 rated, provided, select model) plugged into GFCI outlet (by others). Unit shall
have chrome plated spout and sensor housing with a highly polished finish (or Matte Black when code –41 is specified) over
all exposed surfaces. Unit shall have LED in sensor to indicate function and battery condition (when Battery Box, 0390-BP
{provided}, is used). A self-adhesive label shall be supplied for use at owner’s option to indicate dispenser function. Unit
shall mount on vanity deck up to 2" thick through 1" minimum diameter hole to 1-1/4" maximum diameter hole and shall resist forced
rotation up to 177 in-lbf (20 Nm) with 0390-ARK properly installed (provided).
NOTE: Soap supply shall be from Model Number: 0390 EZFill™ Vanity Mounted Top-Fill Port and Multi-Feed Tank (supplied separately) with capacity of 1.6 Gal (6 L) of
liquid soap containing no abrasives or particulates. Up to six (6) individual EZFill™ vanity mounted automatic soap dispenser units shall draw from each Multi-Feed tank located under counter through connection with under-counter soap distribution tubing (provided). Owner’s Manual and Installation Guide (OM & IG) shall be provided with unit in carton.
Installation for both AC and Battery Operated
Install spout and sensor housing to vanity deck with anti-rotation kit escutcheon flange, rubber washers and basin nut
(supplied) through 1-1/8" Diameter mounting hole and 5/32" Diameter adjacent hole for anti-rotation pin of escutcheon
flange. Connect flex tubing from soap dispenser head to fitting on top of foam compressor. Connect com plug from dispenser head to com socket from foam compressor. Mount pump assembly with wall bracket to convenient structure under
vanity within 24" of L-fitting on foam compressor bottom with two (2) screws and wall anchors (supplied). Connect
flex tubing from L-fitting on air compressor to fitting on top of pump assembly. Connect com plug from foam compressor to
com socket from pump assembly. Connect clear soap supply flex tubing (provided attached to fitting on pump assembly) to
one of six available connectors on Model Number 0390 Multi-Feed tank (supplied separately) so that tube end is just above bottom
of tank. Mount battery compartment in convenient location under vanity deck with two (2) screws and wall anchors
(supplied) within easy reach of cable length and plug connector into mating inline power connector. Install six (6)
‘D’-size 1.5V cells (supplied by others) in under-deck battery compartment according to polarity indication, plug battery cable jack into battery box socket in cover handle and screw lock cover. Alternatively, plug AC Adapter into GFCI power
outlet located under vanity within 13.5 ft (412 cm) of pump assembly and plug connector into mating inline power connector.
Operation
Operation is initiated by hands-free sensor controlled by microprocessor digital circuitry and peristaltic pump is powered by an AC Adapter (also IP67 rated, provided, select model) plugged into GFCI outlet (by others) or an AC Adapter (also IP67 rated, provided, select model) plugged into GFCI outlet (by others).
To activate dispenser, place hand under spout near the sensor for approximately 1 second. Spout dispenses foam hand soap. Optional remote control unit p/n 0393-R allows owner programming of alternate dispense amounts. Unit will dispense soap while batteries are at suitable charge level, correct viscosity soap is present in the tank, and system is correctly maintained to enable dispensing (red LED is not flashing continuously - low battery or does not remain dark - no battery charge). There is a push button that releases soap for easy soap priming.
System allows filling soap from top of vanity without requiring removal of tank under vanity.
Warranty
Two (2) Years Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for Two (2) years from date of sale.
Liquid Soap Dispenser Options Model 0391-1A Universal Stand Alone Model, Battery Operation, Bright Chrome Plated Finish
Model 0391-1A-41 Universal Stand Alone Model, Battery Operation, Matte Black Finish
Model 0391-1AC Universal Stand Alone Model, AC Adapter Operation, Bright Chrome Plated Finish
Model 0391-1AC-41 Universal Stand Alone Model, AC Adapter Operation, Matte Black Finish
Model 0390-1A Top Fill, Multi Feed Dispenser Head, Battery Operation, Bright Chrome Plated Finish
Model 0390-1A-41 Top Fill, Multi Feed Dispenser Head, Battery Operation, Matte Black Finish
Model 0390-1AC Top Fill, Multi Feed Dispenser Head, AC Adapter Operation, Bright Chrome Plated Finish
Model 0390-1AC-41 Top Fill, Multi Feed Dispenser Head, AC Adapter Operation, Matte Black Finish
Foam Soap Dispenser Options
Model 0394-1A Universal Stand Alone Model, Battery Operation, Bright Chrome Plated Finish
Model 0394-1AC Universal Stand Alone Model, AC Adapter Operation, Bright Chrome Plated Finish
Model 0394-1AC-41 Universal Stand Alone Model, AC Adapter Operation, Matte Black Finish
Model 0393-1A Top Fill, Multi Feed Dispenser Head, Battery Operation, Bright Chrome Plated Finish
Model 0393-1A-41 Top Fill, Multi Feed Dispenser Head, Battery Operation, Matte Black Finish
Model 0393-1AC Top Fill, Multi Feed Dispenser Head, AC Adapter Operation, Bright Chrome Plated Finish
Model 0393-1AC-41 Top Fill, Multi Feed Dispenser Head, AC Adapter Operation, Matte Black Finish
Model 0390 (0390-41 for Matte Black Cover) is kit for multi-feed kit dispenser head option 0390-1A or 1AC, 0393-1A or 1AC (-41 for Matte Black Cover). Includes 6 L container, Top Fill Tube, and Counter Fill Port with Cover |
|
|
|
|
|
| Accessories |
|
ASI 0394-1AC EZ Fill™ Automatic Foam Soap Dispenser - Stand Alone Unit, 1 L, AC Plug In, Chrome Finish
|
|
ASI 0394-1A EZ Fill™ Automatic Foam Soap Dispenser - Stand Alone Unit, 1 L, Battery Operated, Chrome Finish
|
|
ASI 0394-1AC-41 EZ Fill™ Automatic Foam Soap Dispenser - Stand Alone Unit, 1 L, AC Plug In, Matte Black Finish
|
|
ASI 0393-R EZ Fill™ Foam Soap Dispensing Multifeed Remote Control
|
|
|
|
|
|
|
|
|
|
|
|
|
ASI 0390-BR EZ Fill™ Soap Dispensing Multifeed Tank Mounting Bracket
|
|
ASI 0390-ARK EZ Fill™ Anti Rotation Kit for 0390 Collection
|
|
ASI 0394-1A-41 EZ Fill™ Automatic Foam Soap Dispenser - Stand Alone Unit, 1 L, Battery Operated, Matte Black
|
|
ASI 0393-1AC EZ Fill™ Automatic Foam Soap Dispenser - Multi Feed Dispenser Head Only, AC Plug In, Chrome Finish
|
|
|
|
|
|
|
|
|
|
|
|
|
ASI 0393-1A EZ Fill™ Automatic Foam Soap Dispenser - Multi Feed Dispenser Only, Battery, Chrome Finish
|
|
ASI 0393-1A-41 EZ Fill™ Automatic Foam Soap Dispenser - Multi Feed Dispenser Only, Battery, Matte Black Finish
|
|
ASI 0390 EZ Fill™ Soap Dispensing Multifeed Kit (serves up to 6 units), Polished Finish Fill Port with Cover
|
|
ASI 0393-1AC-41 EZ Fill™ Automatic Foam Soap Dispenser - Multi Feed Dispenser Head Only, AC Plug In, Matte Black Finish
|
|
|
|
|
|
|
|
|
|
|
|
|
