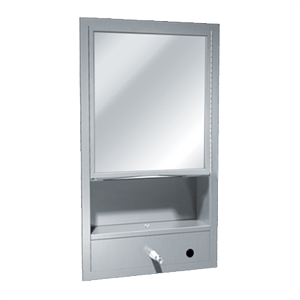

ASI 0430 Recessed All Purpose Cabinet includes Mirror, Shelves, Towel Disp, and Soap Disp
ASI 0430 Recessed All Purpose Cabinet includes Mirror, Shelves, Towel Dispenser, and Soap Dispenser

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $613.30
Our Price: $337.30
Savings: $276.00
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Product Code: 0430
Qty:

Description Technical Specs

ASI 0430 Recessed All Purpose Cabinet includes Mirror, Shelves, Towel Dispenser, and Soap Dispenser
Soap Recommendation
Liquid, lotion or detergent soap, synthetic detergents and antibacterial soaps containing PCMX and/or Triclosan
pH Range: 5.5-8.0
Viscosity Range mPas-cP: 100-2500

Construction
Recessed Cabinet with Shelf, Mirror, Paper Towel and Soap Dispenser shall hold 800 standard multi-fold or 600 standard C-fold paper towels and (3 liters) of liquid and lotion soaps, synthetic detergents and antibacterial soaps containing PCMX and/or Triclosan. Cabinet, door, dispenser tank and frame shall be fabricated of alloy 18-8 stainless steel, type 304, No 22 gauge. Towel dispensing slot shall have a fully hemmed-in rolled edge for snag-free dispensing and user safety. Door shall be attached to cabinet at side with a full length 3/16" dia. (4.8mm) stainless steel multi-staked piano hinge. Soap dispenser and door shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. A tamper resistant sight gauge shall be provided. Mirror shall be fabricated of 1/4" thick plate glass, warranted for 15 years. Face trim shall be 1" (25.4mm) wide formed from one piece with no mitres, welding or open seams and have 1/4" (6.35mm) square return to wall. Structural assembly of all components shall be of welded construction. Valve shall be constructed of a chrome-plated brass body with stainless steel and plastic internal parts. All exposed surfaces shall be No 4 satin finish and be protected during shipment with a PVC film easily removable after installation.
Soap Capacity: 101 oz.
Paper Towel Dispenser Capacity: 600 C-Fold or 800 Multi Fold

Installation
Rough Wall Opening (RWO) 15-3/4" W x 29" H x 4-1/4" D

Unit is mounted in wall recess using No 10 self tapping screws (by others) through concealed mounting holes provided. Note that top of RWO is 3/4" below top of unit.

For compliance with ADA Accessibility Guidelines, unit should be installed so that bottom edge of reflecting surface is 40′′ max. AFF.

Operation
Soap is manually dispensed by pushing valve button until supply is depleted. Towels are self-feeding until supply is depleted. Unit may be reloaded easily by opening door or tank assembly with a partial load in-place and will continue to feed properly. Tank supply is replenished manually on cycle determined by maintenance needs.

Valve operation shall comply with ADA Accessibility Guidelines by requiring no more than 5 lbs (22.2 Newtons) pressure to actuate and require no grasping or twisting by operator.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
