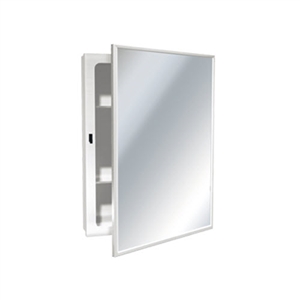

ASI 8338 Surface Mounted Medicine Cabinet with Mirror and 2 Adjustable Shelves, White
ASI 8338 Surface Mounted Medicine Cabinet with Mirror and Shelves

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-895
List Price: $213.00
Our Price: $117.10
Savings: $95.90
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Product Code: 8338
Qty:

Description Technical Specs

ASI 8338 Surface Mounted Medicine Cabinet with Plate Glass Mirror and 2 Adjustable Shelves
Construction
Surface Mounted Medicine Cabinet with Mirrored Swing Door shall be one-piece cold rolled steel with a neutral baked enamel finish. Cabinet shall be provided with two (2) removable white baked enamel steel shelves. Mirror glazing shall be № 1 quality 1/4" thick polished float/plate glass and shall be warranted for fifteen (15) years against silver spoilage. Stainless steel door channel shall be hung on full length 3/16" diameter heavy duty stainless steel multi-staked piano hinge and shall be held closed by a magnetic catch. Cabinet shall have two (2) rubber door silencers. Cabinet can be right-handed swing door or left-handed swing door determined by the installation.

Installation
Install unit on wall using four (4) № 10 pan head self-threading screws (by others) through mounting holes provided in cabinet back. For general utility mount unit 46" above finished floor (AFF) to bottom of unit or 12" above wash basin.

For compliance with 2010 ADA Accessibility Standards install unit so that bottom edge of mirror is 40" MAX AFF.

Operation
Pull the door to access contents and manually pushes door to engage magnetic catch that holds door shut.
