ASI 0484 Partition Mounted Seat Cover and Toilet Tissue Dispenser, Satin Finish

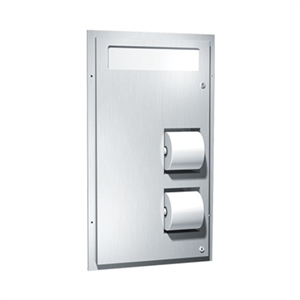

ASI 0484 Toilet Paper Holder image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $589.70
Our Price: $324.30
Savings: $265.40
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days



Product Code: 0484
Qty:

Description Technical Specs

ASI 0484 Partition Mounted Dual Access Seat Cover and Toilet Tissue Dispenser, Satin Finish
Does not allow for grab bar to go over unit

Construction
Partition mounted dual access seat cover and toilet paper dispenser is fabricated of 18 gauge type 304 stainless steel alloy 18-8. The face trim mounting flanges are 22 gauge of one piece construction 1" wide with no welded miters and has square 1/4" returns to face of partition. All exposed surfaces are satin finish. The door is connected to cabinet with a full length piano hinge and held closed with two tumbler locks keyed like other ASI washroom equipment. Theft resistant and vandal resistant rollers are molded of high impact resistant plastic with integral molded in stainless steel end pins. Four (4) R-004 rollers are included.

Installation
Partition Cut Out required: 15-1/2" W x 28-7/8" H x 1/2" to 2" thick partition (394 x 733 x 13 to 51)

Mount unit in partition using No. 10 x 3/4" self tapping screws (supplied) through mounting holes provided. Holes in flanges are offset to prevent screw interference. Note: partition cutout is 7/8" below top of face trim.

Operation
Toilet paper rolls and paper seat covers are serviced by unlocking and opening the door. Seat covers are self feeding until supply is depleted. Seat cover dispenser holds and dispenses 1000 paper seat covers. Toilet tissue dispenser holds and dispenses four (4) standard or four (4) 4-1/2" x 5-1/4" diameter tissue rolls (two per side). The spindles are vandal resistant and only accessible when door is opened. Barrier baffle panels preserve privacy between stalls at all times.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
