ASI 110-1 Security Recessed Chase Mounted Toilet Tissue Dispenser, Square
ASI 110-1 Square Security Toilet Paper Holder

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $190.90
Our Price: $105.00
Savings: $85.90
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days



Product Code: 110-1
Qty:

Description Technical Specs

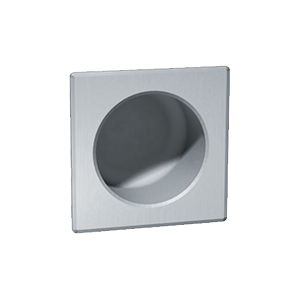

ASI 110-1 Square Security Recessed Chase Mounted Toilet Tissue Dispenser, Satin SS Finish
Construction
Security / Anti Ligature toilet paper roll holder is fabricated of type 304, 14 gauge stainless steel with a #4 satin finish. The unit accommodates one standard core toilet paper roll up to 5" diameter and 4-1/2" deep. Flange is 7" square. Mounting hardware provided.

Installation
RWO: 5-1/2" Diameter x 4-1/2" or less wall thickness
Hardware mounting kit (supplied) shall include two (2) 3" long 1/4"-20 threaded rods with four (4) washers and nuts each and two (2) 1/4"-20 x 3/4" bolts to hold back mounting plate in place. Orientation of threaded rods shall accommodate shallow or deep wall installation. Back of paper holder shall be provided with two (2) welded-on internal 1/4"-20 threaded anchor T-nuts.

Recess mount paper holder into wall opening. For shallow wall mount plate to back of holder with two (2) 1/4"-20 x 3/4" bolts screwed into T-nuts. Secure unit to wall by adjusting two (2) 1/4"-20 x 3" long threaded rods with washers and nuts to accommodate wall thickness.

For compliance with ADA Accessibility Guidelines install unit so that center line of toilet paper holder is between 19" minimum above finished floor to 44" from back wall behind commode. Recommended mounting height off floor 32".

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
