ASI 111 Front Mount Security Toilet Paper Holder, Satin Stainless Steel Finish

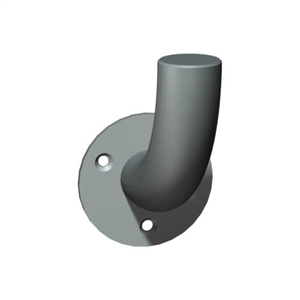

ASI 111 Toilet Paper Holder image
Image is darker than actual unit

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $93.20
Our Price: $51.30
Savings: $41.90
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days



Product Code: 111
Qty:

Description Technical Specs

ASI 111 Front Mount Security Toilet Paper Holder, Satin Stainless Steel Finish
Construction
Front Mount Security Toilet Paper Holder shall be type 304 stainless steel alloy 18-8. Wall flange shall be 12 gauge and tubing shall be 16 gauge. Tubing shall be welded to flat flange with concealed continuous bead. All exposed surfaces shall have satin finish. Flat flange shall have three (3) countersunk mounting holes to accommodate No 10 flat head screws or 1/4" diameter pan head or button head screws (all by others).

Installation
Surface mount unit to finished wall with three (3) No 10-24 x 2 long pin-Torx® flat head machine screws (by others) into suitable prepared mountings (by others) or other suitable mounting hardware (by others) to suit wall conditions.

For compliance with ADA Accessibility Guidelines, install unit so that top of paper holder is between 19" minimum above finished floor (MIN AFF) to 48" maximum AFF (MAX AFF) and centerline of post is between 7" and 9" from front of commode.
Recommended mounting height for general utility is 32" AFF to top of post.

Operation
One roll of toilet paper is placed over the horn type holder for use as required. Toilet paper is replenished on a cycle determined by maintenance needs.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
