ASI 140 Recessed Chase Mount Soap Dish, Satin Finish Stainless Steel

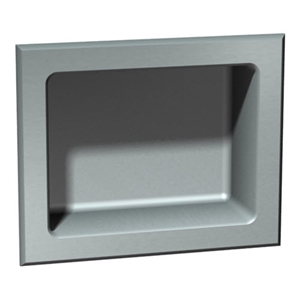

ASI 140 Recessed Soap Dish
Image is darker than actual unit

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $83.70
Our Price: $46.00
Savings: $37.70
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days



Product Code: 140
Qty:

Description Technical Specs

ASI 140 Recessed Chase Mount Soap Dish, Satin Finish Stainless Steel
Construction
Recessed Soap Dish (rear mounted) shall be formed of 16 gauge 18-8 alloy stainless steel, type 304. Unit shall be one piece drawn construction with beveled trim and embossments for air circulation. All exposed surfaces shall have No 4 satin finish. Back of soap dish shall have two (2) welded on 1/4-20-UNC-2B internally threaded posts that accept threaded rods with washers and nuts (supplied). Back plate shall be die-formed of 11 gauge galvanized steel and shall be reversible for shallow or deep wall installation.

Installation

Rough Wall Opening (RWO): 6-1/2" W x 5" H x 2-3/4" D

Recess mount unit through wall opening and secure to finished wall with washers and nuts (supplied).

For compliance with ADA Accessibility Guidelines, install unit so that soap dish is 48" maximum above finished floor (MAX AFF) in showers or 36" MAX AFF in bathtubs or 46" MAX AFF if side reach access over an obstruction (e.g. vanity) is only provided or 44" MAX AFF if forward reach access over vanity basin is provided.

Operation
Soap is stored in the interior of the dish on raised dimples that allow water to drain away and provide a gripping surface to retain soap.
