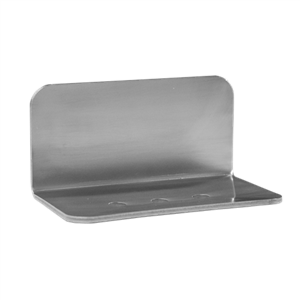

ASI 145 Chase Mount Soap Dish with Drain Holes, Satin Stainless Steel
ASI 145 Surface Mount Soap Dish with Drain Holes

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $91.20
Our Price: $50.20
Savings: $41.00
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days



Product Code: 145


Wall Thickness*:
Less than 6"
6" to 8"
Over 8" - Specify Max in Order Notes

Qty:
Description Technical Specs

ASI 145 Chase Mount Soap Dish with Drain Holes, Satin Stainless Steel
Construction
Surface Mounted Soap Dish (rear mounted) shall be fabricated of 18-8 alloy stainless steel, type 304, No 11 gauge. All exposed surfaces shall have No 4 satin finish. Soap dish shall be provided with three (3) drain holes. Rear of unit shall have two (2) welded-on 1/4-20 internally threaded posts. Two (2) 1/4"-20 threaded zinc-plated steel rods with length specified at time of order to suit wall thickness shall be supplied with two (2) each washers and nuts for mounting. Back plate shall be fabricated of No 11 gauge die-formed galvanized steel and be reversible for shallow or deep wall installation.

Installation
Surface mount unit to finished wall and secure with washers and nuts (supplied). The length of the threaded rods is determined by the thickness of the wall on which the unit is mounted. Specify the thickness of the wall in the following increments (e.g. 145-68)

For compliance with ADA Accessibility Guidelines, install unit so that soap dish is 48" maximum above finished floor (MAX AFF) in showers or 36" MAX AFF in bathtubs or 46" MAX AFF if side reach over and obstruction (e.g. vanity) is only provided or 44" MAX AFF if forward reach over vanity basin is provided.

Operation
Soap is stored on the dish where three (3) holes are provided to allow water to drain away.
