ASI 20200 TRI-umph™ Surface Mtd High Speed Hand Dryer w/ Filter System, Silver, GreenSpec

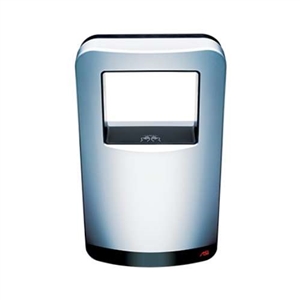

ASI 20200 Hand Dryer

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $2,102.70
Our Price: $1,156.50
Savings: $946.20
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days



Product Code: 20200


Voltage*:
120V
208-240V
277V

Qty:
Description Technical Specs

ASI 20200 TRI-umph™ Surface Mtd High Speed Hand Dryer w/ Filter System, Silver and Black, GreenSpec
Construction
Hand Dryer cabinet is molded in one piece of .06" thick ABS with the cabinet main panel being seamless with a bowed front face that has gently radiused edges and internal reinforcing ribs to provided added strength. The exposed surfaces have a satin finish with the appearance of stainless steel. The hand chamber, filter drawer, and cabinet back are black and of the same grade as the cabinet. Cabinet back steel plates mount flush against wall and have concealed pin hex security screws to retain unit. The motor and heating element have internal resetting automatic thermal protection. The fixed direction air nozzles are heavy duty, rust proof, and tamper resistant. Air intake slots do not allow access to internal parts. Ceramic water evaporator plate is provided. Drip prevention tray is provided with drain port for optional waste line (no supplied) concealed mounted under the filter drawer. Concealed HEPA antibacterial triple filter will remove particles as small as 0.3 micrometers and shall prevent recycling of contaminated air. the circuitry has self adjusting time out and fail safe off protection controlled by a microprocessor that shall detect and reject false signals and automatically self calibrates to provide uniform sensitivity over its entire life span.

Installation
Mount unit cabinet on wall with eight (8) № 10 x 1-1/4" (M5) pan head screws (supplied) through wall plate (provided) into plastic anchors (supplied) or other suitably prepared mountings (by others) or other suitable mounting hardware (by others) to suit wall conditions. Electrical service (see rating per model; provided by others) is either provided to duplex outlet in wall adjacent to unit mounting location or brought to KO location for dryer indicated on diagram prior to installation of unit. Electrical service is supplied and connected (by others) in accordance with schematic and Owner’s Manual provided with unit prior to installing access drawer. Cabinet is secured first to wall plate with a concealed pin-hex socket pan head security screw (supplied) and then filter drawer is secured also with a concealed pin-hex socket pan head security screw (supplied).

For compliance with ICC/ANSI A-117.1 and 2010 ADA Accessibility Standards install unit with top of dryer hand chamber less than 46-3/4" [1187] above finished floor (MAX AFF). For general utility install unit so that top of dryer hand chamber is 44" to 50" [1118 to 1270] AFF. For installation of two or more dryers, units should be no closer than 24" [610] on center. See OM & IG for additional mounting heights for age specific sites.

Operation
User activates dryer by placing hands into open hand chamber. LED’s change color from amber ready status to blue to indicate operation. Directional air jets from top blow water droplets off hands onto evaporator plate. Dryer automatically shuts off after time-out (Hold-On) when user removes hands from sensor zone or after 60 seconds if unit is purposefully kept operating for longer than normal drying time (e.g. washroom experimentation, vandalism). Owner may choose to set heater on or off with concealed switch for increased economy based upon 900 Watt operating reduction or may choose to vary/reduce heat output with concealed control between 400 Watts and 900 Watts for user comfort level. Evaporator plate allows atomized droplets to return to vapor state without dripping on floor or back wall behind and below unit. Drip tray prevents excessive waste water from draining onto floor under unit in very heavy usage settings or in high-humidity environments. Security locking screw concealed under filter access drawer prevents unauthorized tampering and protects asset. Triple-Filter element removes airborne solid particles and is changed manually by owner on cycle determined by maintenance requirements. Replacement filters are available from ASI either in carton quantities or in single units. Motor brushes will require replacement under normal intermittent usage conditions approximately every three to four (3~4) years. Complete operating instructions and maintenance information is provided in OM & IG provided with unit.

Warranty
Unit shall be warranted against defects in materials or workmanship for five (5) years per the manufacturer, American Specialties, Inc.

Accessories
ASI A0247-TRBS TRI-Umph™ Dryer Wall Protector Ceramic Backsplash and Mounting Frame ASI A0278 TRI-Umph™ Triple Filter - HEPA, Anti Microbial, and Anti Odor
Our Price: $65.00
Our Price: $65.50
ASI A0247 Wall Protector image ASI A0278 Hand Dryer Filter image
