ASI 3413 30" Swing Up Exposed Mount Grab Bar 1-1/4" (32mm) OD - Satin Finish

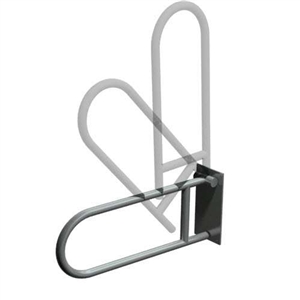

ASI 3413 Swing-Up Grab Bar image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $484.20
Our Price: $266.30
Savings: $217.90
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days


Free Shipping
Product Code: 3413
Qty:

Description Technical Specs

ASI 3413 30" Swing Up Exposed Mount Grab Bar 1-1/4" (32mm) OD - Satin Finish
Construction
Swing Up Grab Bar shall be fabricated of type 304 stainless steel alloy 18-8. Tubing is 1-1/4" diameter x 18 gauge. Mounting Bracket shall be 9 gauge plate with seven (7) 1/4" diameter mounting holes provided. Bar shall have 1-1/2" diameter tubing hinge and shall have a solid bar axle with adjustable friction sleeve balance. All exposed surfaces shall be satin finish. Structure shall be of welded construction. All exposed edges and corners shall be radiused and burr free. Tension for bar movement is accomplished by hex head clamp bolt provided. Grab bar shall be operable with only one hand. Bar mounting plate shall have a top arm stop bumper to prevent raised bar from banging into wall. Grab bar tube shall have a plastic end cap to cushion contact with wall plate in use position.

All Exposed Surfaces are Satin Finish Stainless Steel. Optional non-slip peened Surface denoted on part number with -P (peened).

Installation
Installer/construction contractor must provide concealed anchor plate or blocking as specified in construction documents or as required by local building codes prior to wall finishing. Fasten wall plate to concealed anchor or blocking plate with appropriate hardware (by others) through each of seven (7) mounting holes provided. Install top arm stop bumper (provided lashed to back plate) on top center mounting hole as shown in diagram above when installing mounting hardware (by others). Note: concealed mounting plates or anchors and hardware are not supplied with this product.

For compliance with 2010 ADA Accessibility Standards install unit so that the top of the grab bar is 33" minimum above finished floor (AFF) to 36" maximum AFF.

ASI grab bars are designed to meet and exceed 2010 ADA Accessibility Standards and ANSI A117.1 so that fabricated product shall be of adequate strength to exceed specification compliance by a Factor of Safety of 2. Swing up grab bar support loads in excess of 500 lbs when properly installed. Mounting to the wall is a critical part of the system to meet this requirement. The fastener system must be adequately sized to withstand the shear, tension or pullout, and torsion loads generated by the maximum loading.

Operation
Swing Up Grab Bar is lowered manually to horizontal position for support and raised for departure. Tension control prevents grab bar from dropping from the vertical position. Balance tension is adjustable by owner by tightening or loosening the clamp bolt. It is the owner's responsibility to ensure continued safe operation by performing periodic inspection and effecting any adjustment or repairs required as usage may loosen tension over time. Bumper provides positive bar stop at top rest position. Plastic tube cap closes end of bottom tube and provides smooth solid contact with back plate.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
