ASI 6468 Simplicity™ Collection Recessed Napkin/Tampon Vendor with Free, 25¢, 50¢ Coin Mechanism Options

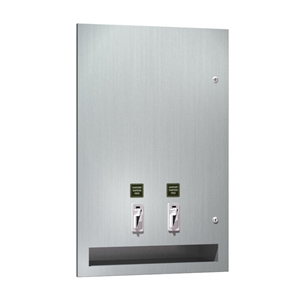

ASI 6468 Sanitary Napkin Dispenser image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $896.60
Our Price: $493.10
Savings: $403.50
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days



Product Code: 6468


Coin Mechanism: 		Free
25 cents
50 cents

Qty:
Description Technical Specs

ASI 6468-F Simplicity™ Collection Recessed Sanitary Napkin and Tampon Vendor with Free, 25¢, 50¢, Satin Finish
Dispenses 27 Tampons and 30 Feminine Napkins

Construction
Recessed Sanitary Napkin / Tampon Vendor is fabricated of 18-8, type 304, 20 gauge stainless steel with all exposed surfaces having a satin finish. Full face 18 gauge door connects to the 20 gauge cabinet with a full length stainless steel piano hinge and is held closed with two tumbler locks keyed like other ASI Washroom Equipment. Internal coin box is keyed differently than door locks. Weights for each feed track are supplied.

Installation

Rough Wall Opening (RWO) required is 16"W x 26"H x 6-1/4"D (406mm x 660mm x 159mm)

Unit is mounted in wall recess using No. 10 self tapping screws (by others). Note that coin slot is 6-3/8" above bottom edge of rough wall opening, bottom flange is 5/8" below bottom edge of RWO.

For maximum usability and compliance with ADA Accessibility Guidelines, unit should be installed so that coin slot is between 54" (1372mm) maximum above finished floor (AFF) and 38" (965mm) minimum AFF.

Operation
Deposit of specified coin allows operation of dispenser. Napkin and tampon dispensers operate independently. The selected product drops into vending opening after operator actuation. Indicator displays when empty and blocks coin slot when product is depleted. Product supply is replenished by opening door and manually reloading into dispenser supply tracks. Track weights must be used to provide positive feed.


Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
