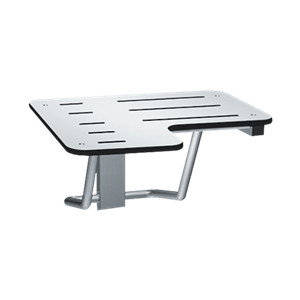

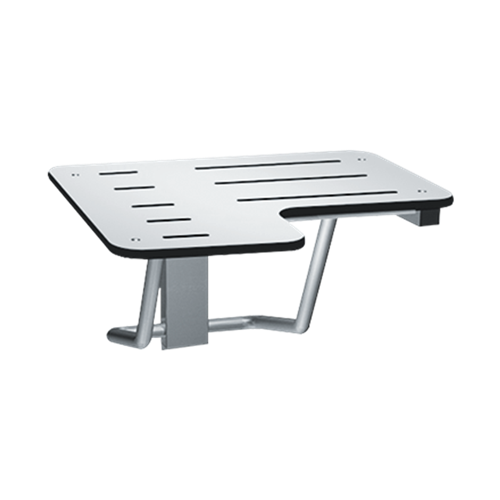

ASI 8206-R-28 Right Hand L-Shaped Folding Shower Seat, Phenolic, 28" Wide
ASI 8206-R-28 Right Hand L-Shaped Folding Shower Seat

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $474.40
Our Price: $242.04
Savings: $232.36
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days


Product Code: 8206-R-28
Qty:

Description Technical Specs

ASI 8206-R-28 Right Hand L-Shaped Folding Shower Seat, Phenolic, ADA Compliant
Construction
L-shaped Phenolic Fold-up Shower Stall Seat shall have all metal parts fabricated of 18-8 alloy type 304 stainless steel. Seat frame and support legs shall be 1" diameter and 1-1/4" square x 18 gauge with 3/16" thick mounting flanges and 16 gauge guide bracket/arm support. All exposed surfaces shall have satin finish. Structural assembly shall be of welded construction and all exposed edges and corners shall be radiused and/or deburred. Seat shall be solid phenolic with white color top and bottom surfaces and shall have black edges. Support arm shall fold up when in retracted position to provide low profile against wall. No extra fittings shall be required to retain seat in storage position. Guide bracket shall control seat lowering into operating position.

ASI Shower Seats are designed to meet and exceed 2010 ADA Accessibility Requirements so that fabricated product shall be of adequate strength to support a load minimum of 250 lbs and unit shall conform to size and edge clearances as diagrammed. Mounting to the wall is a critical part of the system to meet this requirement. To withstand the shear, tension or pullout, and torsion loads generated by the maximum loading, the fastener system must be adequately sized. Unit is load rated to support a weight of 500 lbs (226,8 kg) at front edge when properly installed and has been tested to successfully hold a weight in excess of 1000 lbs (453,6 kg).

Installation
This unit is surface mounted. Installer/construction contractor must provide concealed anchor plate or blocking as specified in construction documents or as required by local building codes prior to wall finishing. Fasten unit flanges and guide bracket to concealed anchor or blocking plate with appropriate hardware. Note that concealed mounting plates or anchors and hardware are not supplied with this product and must be specified separately. Ensure that mounting configuration complies with local building codes. Unit is reversible in the field for right or left hand installation.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.

Operation
Fold-up Shower Seat requires only one hand operation to manually lower to horizontal position for use or raise for departure and arrival. Guide bracket with spring detent prevents seat from dropping and provides positive support in usage position as well as spring locked storage position.

Left Hand Options
Model 8206-SC-L Left Hand, 33" W, Slow Closing
Model 8206-L-28 Left Hand, 28" W
Model 8206-L Left Hand, 33"

Right Hand Options
Model 8206-SC-R Right Hand, 33" W, Slow Closing
Model 8206-R-28 Right Hand, 28" W
Model 8206-R
Right Hand, 33"
