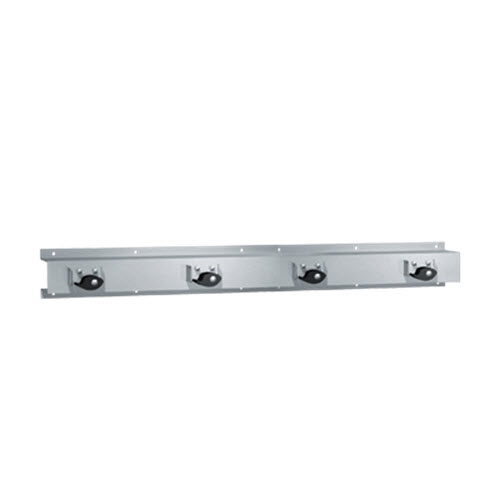

ASI 8215-4 36" Mop and Broom Holder, 4 Holders
ASI 8215-4 36" Mop and Broom Holder with 4 Holders

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $109.60
Our Price: $60.30
Savings: $49.30
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days



Product Code: 8215-4
Qty:

Description Technical Specs

ASI 8215-4 36" Mop and Broom Holder with 4 Holders
Construction
Mop and broom holder rack shall be fabricated of 20 gauge type 304 stainless steel alloy 18-8 one-piece hat channel with satin finish. Mop holder brackets shall be cadmium-plated steel and shall be ribbed for strength. Each mop holder shall have a pivoting spring loaded serrated rubber cam that shall hold round handles of 7/8" to 1-1/4" diameter wedged against ribbed clamp plate. Each mop holder shall support up to 10lbs.

Installation
For general utility mount rack 70" above finished floor (AFF) from bottom of rack with № 10 pan head self-threading screws (by others) through holes provided.

For compliance with 2010 ADA Accessibility Standards install unit so that top of rack is 48" maximum AFF if clear floor reach access is provided.

Operation
Mop or broom handle is pushed into grip-jaw of pivoting serrated rubber cam with upward motion until it seats behind rib on clamp plate. Spring holds cam against handle. Gravity holds mop clamped in position.
