Bobrick B-3092 ClassicSeries® Recessed Napkin Disposal/Seat Cover/Toilet Tissue Disp

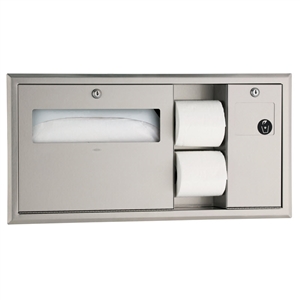

Bobrick B-3092 Toilet Paper Holder image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $821.70
Our Price: $472.48
Savings: $349.22
Manufacturer: Bobrick
Country of Origin: USA
Availability: Usually Ships within 1-2 Business Days


Free Shipping
Product Code: B-3092
Qty:

Description Technical Specs A Note from the Manufacturer

Bobrick B-3092 ClassicSeries® Recessed ADA Compliant Napkin Disposal, Seat Cover, and Toilet Tissue Dispenser - Satin Finish
Construction
Recessed toilet seat cover and multi roll toilet tissue dispenser with sanitary napkin disposal is fabricated of 18-8, type 304 stainless steel. The cabinet has all welded construction. Flange is drawn and beveled, one piece, seamless construction. The doors are secured to the cabinet with full length piano hinges and are equipped with tumbler locks keyed like other Bobrick washroom accessories. Equipped with two (2) spindles made of chrome plated plastic with a heavy duty internal spring that hold standard core rolls up to 5-1/4" diameter. Disposal panel is secured to cabinet with a spring loaded hinge resulting in the door being in the closed position. The disposal panel includes the graphic symbol for waste "drop here." Removable waste receptacle is fabricated of 18-8 type 304 heavy duty gauge stainless steel with 0.4 gallon capacity. All exposed surfaces are satin finish.

Installation
Provide framed rough wall opening 26-5/8" wide x 12-5/8" high (675 x 320mm). Minimum recessed depth required from finish face of wall is 4" (102mm). Allow clearance for construction features that may protrude into rough wall opening from opposite wall. Coordinate with mechanical engineer to avoid pipes, vents, and conduits in wall. If unit projects above top of wainscot, provide aluminum channel or other filler to eliminate gap between flange and finish face of wall. Mount unit in wall opening with shims between framing and cabinet at all points indicated by an S, then secure unit with #8 x 1-1/4" (4.2 x 32mm) sheet metal screws (not furnished).

Designer’s Notes:

1. Recessed B-3092 mounts flush in right side wall in accessible toilet compartment with toilet seat cover on left side of unit (when seated on toilet).
2. For unit to mount on the left side of toilet (when seated on toilet) see model B-3091.
3. For wall mount units, see models B-30919 for left side and B-30929 for right side (when seated on toilet).
4. For visual placement of models inside toilet compartment, click on the tab "A Note from the Manufacturer" next to the technical specs tab above.

Operation
Holds two (2) standard core toilet tissue rolls up to 5-1/4" diameter. Toilet seat cover dispenser holds 500 single or half fold paper covers. The doors unlock with key provided and swing open for filling. The 0.4 gallon receptacle is removable for servicing.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.


Accessories
