Bobrick B-30929 Recessed Toilet Paper Holder

Home > Toilet Tissue Dispensers > Multiple Roll >

Bobrick B-30929 ClassicSeries® Surface Mounted Napkin Disposal/Seat Cover/Toilet Tissue Disp

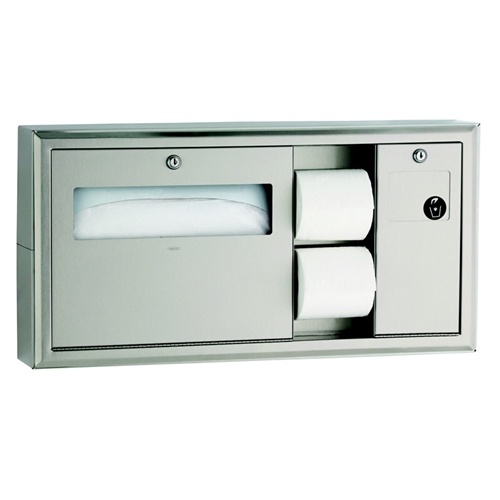

Bobrick B-30929 Toilet Paper Holder image

List Price: $1,023.90

Our Price: $588.74

Savings: $435.16

Manufacturer: Bobrick
Country of Origin: USA
Availability: Usually Ships within 1-2 Business Days

Product Code: B-30929

Qty:

Description

Technical Specs

A Note from the Manufacturer

Bobrick B-30929 ClassicSeries® Surface Mounted ADA Compliant Napkin Disposal, Seat Cover, and Toilet Tissue Dispenser - Satin Finish

Construction

Recessed toilet seat cover and multi roll toilet tissue dispenser with sanitary napkin disposal is fabricated of 18-8, type 304 stainless steel. The cabinet has all welded construction. Flange is drawn and beveled, one piece, seamless construction. Skirt is heavy gauge satin stainless steel. The doors are secured to the cabinet with full length piano hinges and are equipped with tumbler locks keyed like other Bobrick washroom accessories. Equipped with two (2) spindles made of chrome plated plastic with a heavy duty internal spring that hold standard core rolls up to 5-1/4" diameter. Disposal panel is secured to cabinet with a spring loaded hinge resulting in the door being in the closed position. The disposal panel includes the graphic symbol for waste "drop here." Removable waste receptacle is fabricated of 18-8 type 304 heavy duty gauge stainless steel with 0.4 gallon capacity. All exposed surfaces are satin finish.

Installation
Coordinate with mechanical engineer to avoid pipes, vents, and conduits in wall. Secure unit with #8 x 1-1/4" (4.2 x 32mm) sheet metal screws (not furnished).

Designer’s Notes:
1. Surface Mounted B-30929 mounts on right side wall with toilet seat cover dispenser on left side of unit (when seated on toilet).
2. For unit to mount on the left side of toilet (when seated on toilet) see model B-30919.
3. For recessed units, see models B-3091 for left side and B-3092 for right side (when seated on toilet).
4. For visual placement of models inside toilet compartment, click on the tab "A Note from the Manufacturer" next to the technical specs tab above.

Operation
Holds two (2) standard core toilet tissue rolls up to 5-1/4" diameter. Toilet seat cover dispenser holds 500 single or half fold paper covers. The doors unlock with key provided and swing open for filling. The 0.4 gallon receptacle is removable for servicing.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
