Koala Kare KB102-00 Surface Mounted Plastic Child Protection Seat, Cream

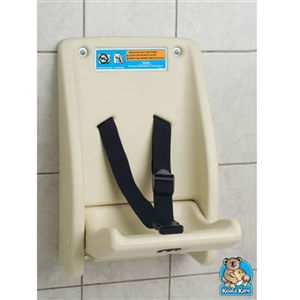

Koala Kare KB102-00 Baby Changing Station image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $140.00
Our Price: $80.00
Savings: $60.00
Manufacturer: Koala Kare
Country of Origin: USA
Availability: Call 844-699-2779 For Current Lead Time


Product Code: KB102-00
Qty:

Description Technical Specs A Note from the Manufacturer

Koala Kare KB102-00 Surface Mounted Plastic Child Protection Seat, Cream
Construction
Toddler safety seat is fabricated of durable, high density polyethylene with
Microban® antimicrobial. Seat is secured to back plate with a steel pivot rod concealed in an aluminum tube hinge rod mechanism. The textured seat surface has nylon safety straps.

Installation
To ensure proper installation and compliance with building codes, it is recommended that a qualified person or carpenter perform the installation of the unit. The Child Protection Seat must be properly installed onto wall or partition of restroom or fitting room that is capable of supporting significant weight and can accommodate the supplied installation hardware (or other suitable hardware, not included, if unit is to be installed on another type of wall such as a cinder block or permanent wall).

Drilling holes and mounting the station:
1. Remove the unit from the shipping container and check for any freight damage. Identify the best location for installing the Child Protection Seat. Hold the unit in place, open the seat, and make sure that there is adequate operating clearance. Use the seat as a template for locating the four mounting holes onto the mounting surface. Seat bottom should be 2” from bottom of wall/partition or 14” from the floor, whichever is higher.

2. The Child Protection Seat has four mounting holes provided in the back wall of the unit, which are positioned 8” apart horizontally and 17” apart vertically. Hardware included with unit is intended for installation of seat to a restroom or fitting room partition. If Installing onto another wall type separate hardware will be required (not included).

3. After establishing the proper placement of the four mounting holes, drill through partition using 3/8” (10 mm) drill bit.

4. Insert the four threaded barrel bolts (supplied) from the outside of the partition.

5. Mount the Child Protection Seat with the four 1/4” (6 mm) bolts and washers.

6. Place the label/decal on the outside of stall or fitting room door.

Operation
Designed to mount on the wall of a restroom stall or a dressing room. Closed unit folds to less than 6”, and requires less than 2 sq. ft of wall space. High-density polyethylene is easy to clean and resists fungal and bacterial growth. Can withstand static loads of 50 pounds.

Warning: To ensure that the unit supports the intended loads, seat must be properly installed according to the manufacturer’s instructions.

Warranty
Unit shall be backed by manufacturer’s 5-year limited warranty on materials and workmanship and include a provision for replacement caused by vandalism.

Accessories
Koala Kare 795 Restroom Door Label for KB102
Our Price: $6.45
Koala Kare 795 Restroom Door Label for KB102 Child Safety Seat
