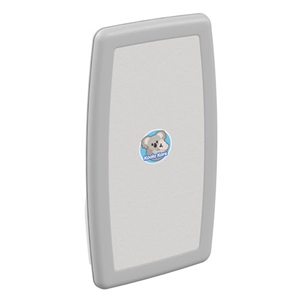

Koala Kare KB301-05 Surface Mounted Vertical Plastic Baby Changing Station, White Granite
Alternative Views:
Large Quantity, Item Customization, or Government Project?
Request A Quote
or give us a call at
920-569-0895
List Price: $536.00
Our Price
:
$
276.04
Savings: $259.96
Manufacturer:
Koala Kare
Country of Origin:
USA
Availability:
Usually Ships in 2-3 Weeks
Product Code:
KB301-05
Qty:
Description
Technical Specs
Koala Kare KB301-05 Surface Mounted Vertical Plastic Baby Changing Station,
White Granite
Koala Baby Changing Stations ship complete with TPU safety strap, mounting instructions, and hardware
Construction
Koala Kare baby changing station is fabricated of injection molded polypropylene with
Microban®
antimicrobial embedded into plastic material on the changing surfaces. Equipped with a pneumatic cylinder for controlled opening and closing of bed. Bed is secured to metal mounting chassis with a concealed steel on steel hinge. No hinge structure is exposed on interior or exterior surfaces. Bed is secured to metal mounting chassis and has smooth concave changing area. Built in liner dispenser is for use with 3 ply chemical free biodegradable liners. Dual cavity liner dispenser holds approximately 50 - KB150-99 bed liners. Instructional graphics and safety messages in four languages included. Optional Braille label is available. Mounting hardware included.
Installation
To ensure proper installation and compliance to building codes, it is recommended that a qualified person or carpenter installs the Koala Baby Changing Station unit. The unit must be properly installed onto a permanent wall that is capable of holding a substantial load and can accommodate the supplied installation hardware. The maximum recommended total weight for this baby changing station (including baby and parcel bag) is 50 lbs. Excessive weight may cause a hazardous or unstable conditions to exist. The Koala Baby Changing Station meets ADA regulations when properly installed. Installer should account for the space that a unit occupies when in the down position and with the caregiver (whether standing or seated) in front of the unit. Locate the unit so that paths of travel are maintained around it when being used.
Drilling holes and mounting the station:
1. Remove changing station from the shipping container and check for any freight damage. Identify the best location for installing the unit.
2. Remove the bed and chassis from the box. Open the main unit by pulling up on the frame and remove the plastic liner dispenser. Set it to one side.
Make sure you have taken into consideration the operating clearance of 1 3/4” (45 mm) on both sides of the exposed chassis and 36 5/8” (238 mm) from wall surface when open. Measure from the floor 37 7/16” (951 mm) on stud center and mark the wall.
Wood Stud Wall-
The mounting holes are designed for 16” stud centers. Ensure the locations you have marked for the mounting holes are level before drilling. Drill pilot holes for keyhole mounting using a 1/8” regular drill bit.
Masonry or Tile over Stud Wall
- Use a 7/32” (6 mm) masonry drill bit for the pilot hole until you hit the stud. Change bit to 1/8” (3 mm) regular drill bit.
Metal Stud or Concrete Block-
If the wall has metal studs or an underlying surface of concrete block, you will need to use toggles to secure one side of the unit. The other side should be secured to the stud using the screws provided. You must allow for space inside the wall for the toggles to turn. This will vary depending on the toggles used.
3. Screw two of the mounting screws into the pilot holes leaving ¼” (6 mm) exposed to allow keyhole slots to be easily mounted over the screw heads. Place chassis over screws. After securing the unit using the keyhole slots, verify that the unit is level. Tighten top two screws so that they are flush with the wall. Use the four lower holes as a guide to mark and drill pilot holes. Use remaining four screws and four washers to complete installation of bed and metal mounting bracket. Insert washers over lower four screws. All SIX screws and four washers must be mounted to the chassis.
4. Ensure liner dispenser is free from damage. Remove key, unlock, and open liner dispenser lid. This will expose liner dispenser mounting holes. Line up dispenser mounting holes onto chassis and secure with the four screws provided. Close and lock the liner dispenser door.
5. Clean work area and inspect unit to ensure it opens and closes smoothly. Give Operator Kit and key to the facility operator.
The design and manufacture of Koala products Is intended to be compliant with the 2010 ADA Standards for Accessible Design and the 2009 ICC A117.1, Accessible and Usable Buildings and Facilities. Unit shall conform to ASTM F 2285-04(16) Standard Safety Performance Specification for Diaper Changing Tables for Commercial Use, ANSI Z535.4 Product Safety Signs and Labels, EN 12221:2008+A1:2013. Check local code for more stringent code.
Operation
Concealed pneumatic cylinder and metal mounting chassis provides controlled, slow opening and closing of bed. Polypropylene is easy to clean and resists odors and bacterial growth. Complies with ASTM static load performance requirements when properly installed. Internal liner dispenser with integrated spring tab dispensed one liner at a time.
Warning: To ensure that the unit supports the intended loads, baby changing stations must be properly installed according to the manufacturer's instructions.
Warranty
Koala warrants that at the time that any baby changing station is delivered to Purchaser, they will be free from defects in material and workmanship under normal use and service, with proper maintenance, for a period of five (5) years. These warranties are limited to, at the option of Koala, the repair or replacement of the defective item, provided that such item is returned to Koala, transportation prepaid, for Koala's inspection and approval.
